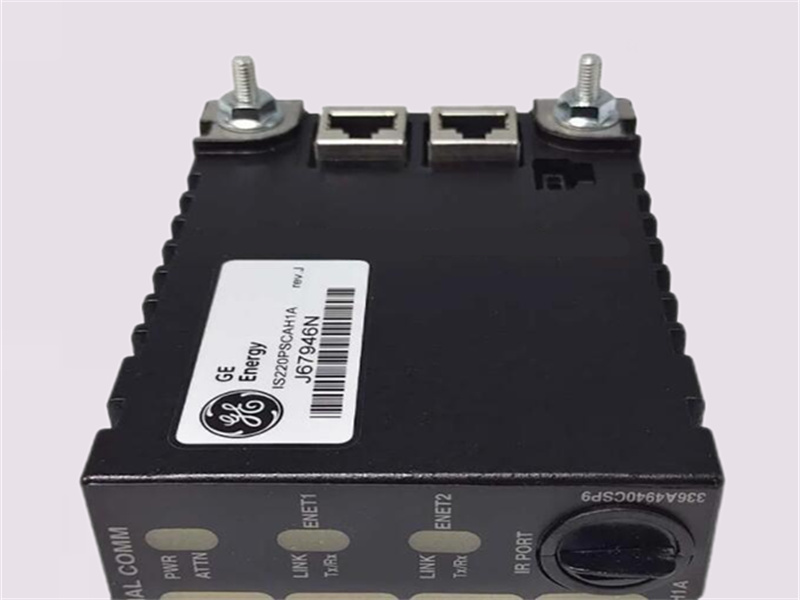

IS220PSCAH1A GE Mark VIe, Serial Communications Pack

The IS220PSCAH1A I/O Pack is compatible with up to two possible Ethernet networks and a serial communication terminal board for electrical interfaces. This pack supports three distinct port channels, which are the RS485 half-duplex, RS232, and RS422 standards.

  • Item NO.:

    IS220PSCAH1A
  • Payment:

    T/T
  • Price:

    $4230
  • Product Origin:

    U.S.A.
  • Shipping Port:

    Xiamen
  • Lead Time:

    5-7 days
  • Goods Stock:

    2
  • Product weight:

    0.5 kg

Manufacture
GE
Model
IS220PSCAH1A
PN No. IS220PSCAH1A
Catalog
Mark VIe
Description
Serial Communications Pack
Origin U.S.A.
HS CODE 85389091
Dimension 37*30*4 (CM)
Weight 0.5 kg

Description:

The IS220PSCAH1A I/O pack is utilized for Serial Modbus Communication and is specifically designed for the Mark VIeS control system by General Electric. When deployed, this pack facilitates interfacing between up to two input-output Ethernet networks and a serial communication board. The board boasts six individually configurable serial transceiver channels, compatible with RS485 half-duplex, RS232, and RS422 standards. Power to the PSCA pack is supplied through a three-pin power input and dual RJ45 Ethernet connectors.

The IS220PSCAH1A pack features a Serial Modbus Master Service with several characteristics, including:

- RTU
- Data Bits: seven, eight
- 32-bit data Word ordering
- Parity: even, none, odd
- Station addresses

These attributes are applicable to the six configurable ports on the PSCA pack, with configurations possible at the port level. The PSCA's two Ethernet ports can support Ethernet Modbus Master Protocols, though this setup is restricted to simplex networks.

The IS220PSCAH1A pack also possesses self-diagnostic capabilities, one of which involves monitoring analog inputs for position and pressure, checking configurable high and low levels. These parameters are crucial for enabling and disabling functions, latching/non-latching, and generating alarms, such as alarms 32-67, 114-119, 108-113, and 72-107, each indicating different errors.

For comprehensive information on the IS220PSCAH1A pack, the most useful manuals are the two volumes of the GEH-6855 manual and the GEH-66725 Mark VIe and VIeS Controls Equipment HazLoc manual.

Datasheet Link:

IS220PSCAH1A GE Mark VIe, Serial Communications Pack PDF Datasheet
