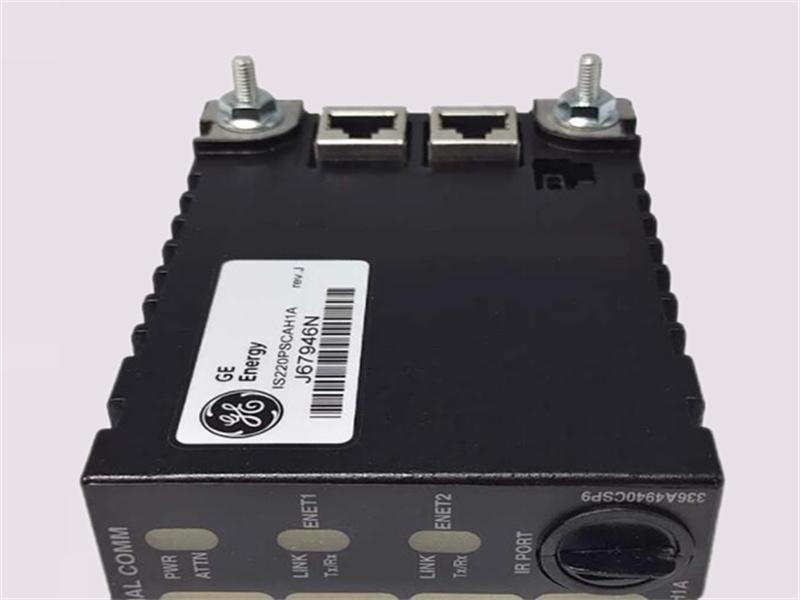

IS220PSCAH1A GE Mark VIe, I/O pack

Description:

The IS220PSCAH1A I/O pack is utilized for Serial Modbus Communication and is specifically designed for the Mark VIeS control system by General Electric. When deployed, this pack facilitates interfacing between up to two input-output Ethernet networks and a serial communication board. The board boasts six individually configurable serial transceiver channels, compatible with RS485 half-duplex, RS232, and RS422 standards. Power to the PSCA pack is supplied through a three-pin power input and dual RJ45 Ethernet connectors.

The IS220PSCAH1A pack features a Serial Modbus Master Service with several characteristics, including:
- RTU
- Data Bits: seven, eight
- 32-bit data Word ordering
- Parity: even, none, odd
- Station addresses
These attributes are applicable to the six configurable ports on the PSCA pack, with configurations possible at the port level. The PSCA's two Ethernet ports can support Ethernet Modbus Master Protocols, though this setup is restricted to simplex networks.
The IS220PSCAH1A pack also possesses self-diagnostic capabilities, one of which involves monitoring analog inputs for position and pressure, checking configurable high and low levels. These parameters are crucial for enabling and disabling functions, latching/non-latching, and generating alarms, such as alarms 32-67, 114-119, 108-113, and 72-107, each indicating different errors.

Frequently Asked Questions:
1.What are the current and voltage of IS220PSCAH1A?
2A - 24A at 24 VDC, 3.5A at 12 VDC

2.What are features of IS220PSCAH1A?
-Regulated switch mode type
-Low profile case
-Easy DIN-rail mounting
-Constant-current short circuit protection
-Low ripple and noise
-Selectable input voltage (115/230 VAC)
-High EMC immunity

3.What is Ambient Temperature Range of IS220PSCAH1A?

-40 to 158 ºF

Datasheet Link:

IS220PSCAH1A GE Mark VIe, I/O pack PDF Datasheet
