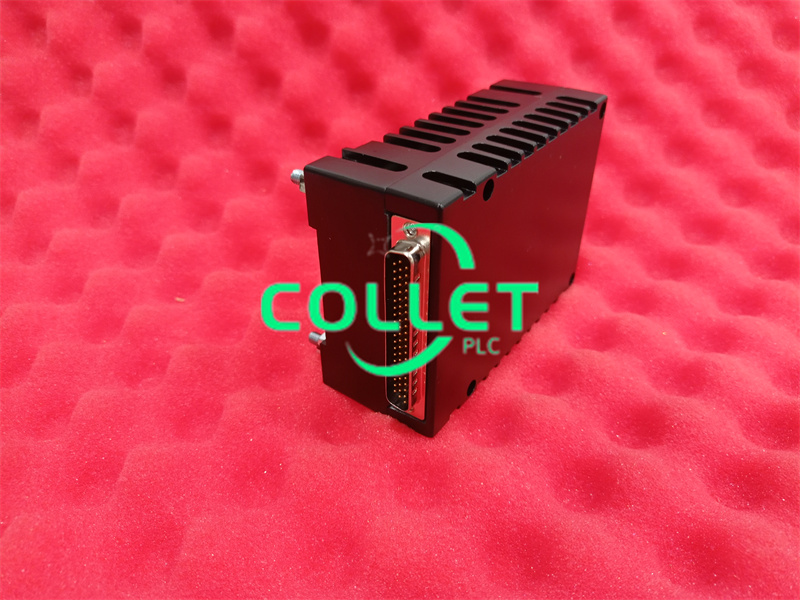

IS220PCNOH1A GE Mark VIe, CANOPEN Interface Pack

Description:

Functional Description：
IS220PCNOH1A is a CANOPEN Master Gateway Module developed by GE. It is a part of Mark VIe series. The CANopen Input/Output pack is an NMT CANopen master that maps I/O from CANopen Woodward GS6 and GS16 valves to MarkVIe controllers via I/O Ethernet. The CANopen I/O pack (PCNO) is a network management master that maps CANopen I/O to IONet Mark VIe controllers. The PCNO I/O pack includes a BPPx processor board and an acquisition carrier board outfitted with a Hilscher GmbH COM-C CANopen communication module. The CANopen fieldbus interface is provided by the COM-C module via a DE-9 D-sub receptacle connector. It functions as a CANopen master with a maximum transmission rate of 500 kbps. The PCNO supports the redundancy two options. Single I/O pack with a single I/O Ethernet connection (no redundancy) and dual I/O Ethernet connections
Features：
The module includes a processor board that is shared by most Mark VIe distributed I/O modules and an acquisition carrier board outfitted with a Hilscher GmbH COM-C CANopen communication module.
The CANopen fieldbus interface is provided by the COM-C module via a DE-9 D-sub receptacle connector. It functions as a CANopen master with a 500 Kbaud transmission rate that communicates with one to five Woodward GS6 or GS16 valves.
The following redundancy options are supported by the PCNO:
-One I/O pack with one Ethernet connection (no redundancy)
-Dual I/O Ethernet connections on a single I/O pack

Compatibility：
The SPIDG1A CANopen Master Gateway Terminal board is used to mount the PCNO and provide an electronic ID.
Its only connection is to the PCNO, as the CANopen connection is made to the DE-9 D-sub receptacle connector exposed on the PCNO's side. On the PCNO, indicator LEDs provide visual diagnostics.
Processor：
The processor board is shared by all Mark VIe Ethernet I/O packs or modules. It includes the following:
-Two fully independent 10/100 Ethernet ports with connectors
-High-speed processor with RAM and flash memory
-Hardware watchdog timer and reset circuit
-Internal temperature sensor
Auto-Reconfiguration：
The Auto-Reconfiguration feature allows the operator to replace I/O packs without having to manually reconfigure each pack or module.

When the controller detects an I/O pack booting with a different configuration and the Auto-Reconfiguration feature is enabled, a reconfiguration file is automatically downloaded from the controller to the I/O pack. The bootload, baseload, firmware, and parameters are all reconfigured.
Unless it already has the latest version, each I/O pack is updated with the current configuration that matches the configuration used by the controller.
