IS200TBTCH1BBB GE Mark VI, Thermocouple Terminal Board

Description:

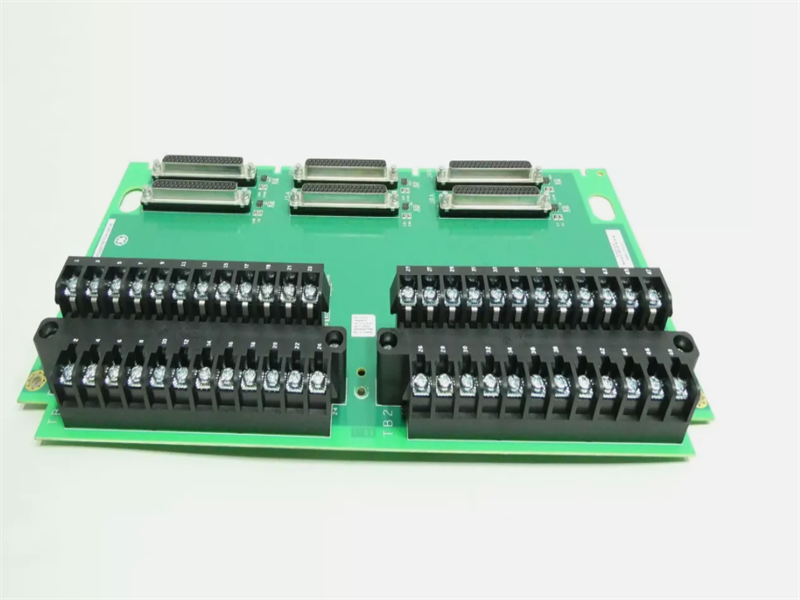

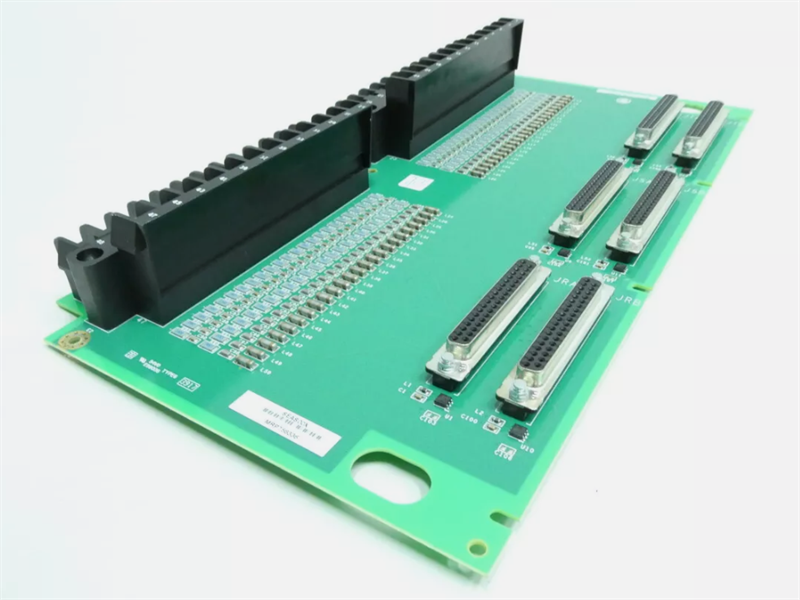

The model IS200TBTCH1BBB, houses a variety of electronic components in different sizes, from large to very small. The most conspicuous elements on this board are two large black terminal blocks, each containing twenty-four silver, cube-shaped metal terminals. Each terminal is marked with a white number printed adjacently on the board.

Following in prominence are two jack connector ports, distinguished by their silver and black coloration. These ports are labeled as JA1 (top) and JB1 (bottom). On the right side near the center of the IS200TBTCH1BBB, there are two rows of capacitors denoted by the letter "L." These diminutive components have a silver body with black bands. Adjacent to these, on the left, is a series of solid silver capacitors.

In the central area of the IS200TBTCH1BBB, two long lines of small blue resistors are present. Between these rows of resistors, another extended sequence of tiny silver capacitors is positioned.

Datasheet Link:

IS200TBTCH1BBB GE Mark VI, Thermocouple Terminal Board PDF Datasheet
