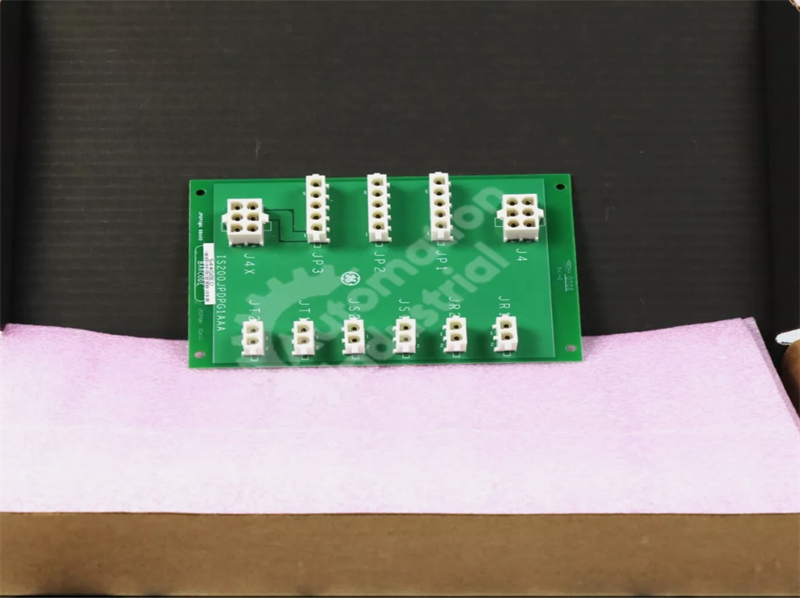

IS200JPDPG1AAA GE EX2100, Power Distribution Board

Description:

The IS200JPDPG1AAA Local Power Distribution Board has a number of applications and functions that are important to understand before a working knowledge of its hardware components and component specifications can be achieved. For example, a primary application of this module can be identified in its providing of intermediate 28 V dc power distribution from corresponding JPDS or JPDM boards to their respective JPDL board, where they will be transmitted to further I/O pack distribution. A secondary intended application of this IS200JPDPG1AAA printed circuit board is its optional power provision to Mark VIe Series Assembly ethernet switches.

Now that the various applications of this IS200JPDPG1AAA Local Power Distribution Board have been identified, it is possible to begin identification of some of the central hardware components to this product. One such crucial element exists in this JPDP board's series of inputs and outputs. This distribution board has one singular input; a six pin connector with three different 28 V dc Pbus feeds. The IS200JPDPG1AAA PCB has more to offer in terms of its outputs, however, making use of the nine total connections illustrated in the IS200JPDPG1AAA Instructional Manual, which has been embedded above in the manuals tab for your convenience. In terms of customizable hardware additions, no switches or manually moveable hardware jumpers seem to have been included in this board's normal assembly version. This IS200JPDPG1AAA Local Power Distribution board additionally does not process any diagnostic signals, regardless of the fault or diagnostic conditions at hand. It is important to note that the information stored on this page is largely reminiscent of this board's IS200JPDPG1 parent model, and that any hardware specifications detailed for this product may be altered or changed entirely through this product's three significant revisions.

Datasheet Link:

IS200JPDPG1AAA GE EX2100, Power Distribution Board PDF Datasheet
