IS200SSCAH2A TREGH2BDE GE Mark VI, SERIAL COMM TERMBD

Description:

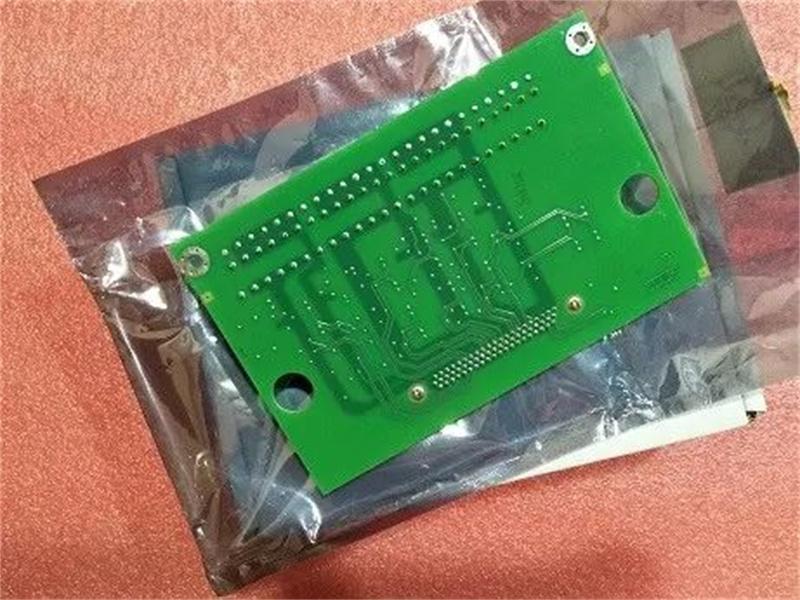

The IS200SSCAH2A is a SERIAL COMM TERMBD from the Mark VI series, which is part of GE's Speedtronic line for managing gas or steam turbines. This particular board is compact and equipped with a limited number of components, including a single terminal block that needs to be populated.

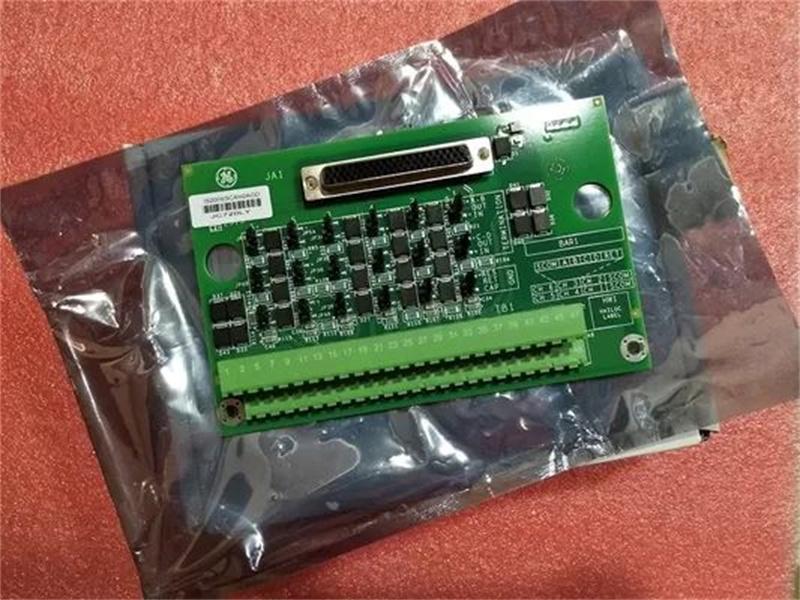

On one side of the board, adjacent to a singular integrated circuit, sits a 37-pin cable connector named JA1. The board also houses 18 jumper switches, along with lines of resistors and capacitors running down the center.

Grounding is managed by one set of jumpers, while the remaining two sets control termination. The positions for these jumpers are clearly marked on the board, which also has two larger circular slots cut into its surface to facilitate secure attachment.

Datasheet Link:

IS200SSCAH2A TREGH2BDE GE Mark VI, SERIAL COMM TERMBD PDF Datasheet
