IS200LSTBH1A GE LS2100, Terminal Board

Description:

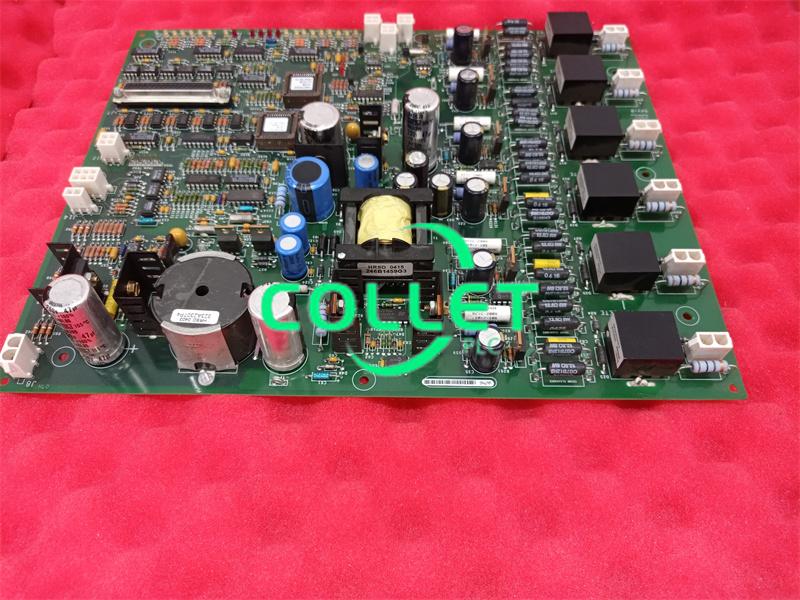

The IS200LSTBH1A model falls under the Load Commutated Inverter Series and is commonly employed either as a power converter assembly or a control assembly. It plays a crucial role in regulating the speeds of synchronous machines, including engines, generators, and motors. This versatile board can be installed within four distinct cabinets: the load bridge, pump, source bridge, or control cabinet, each containing specific hardware components.

Comprised of multiple integrated elements, the IS200LSTBH1A includes several programmable microprocessors along with associated drive software and auxiliary circuits. The board also features an array of mounted capacitors, diodes, resistors, and transistors. Additionally, several LEDs are present on the front faceplate for visual indications. All markings on the board are designed to facilitate proper alignments and wiring connections.

Datasheet Link:

IS200LSTBH1A GE LS2100, Terminal Board PDF Datasheet
