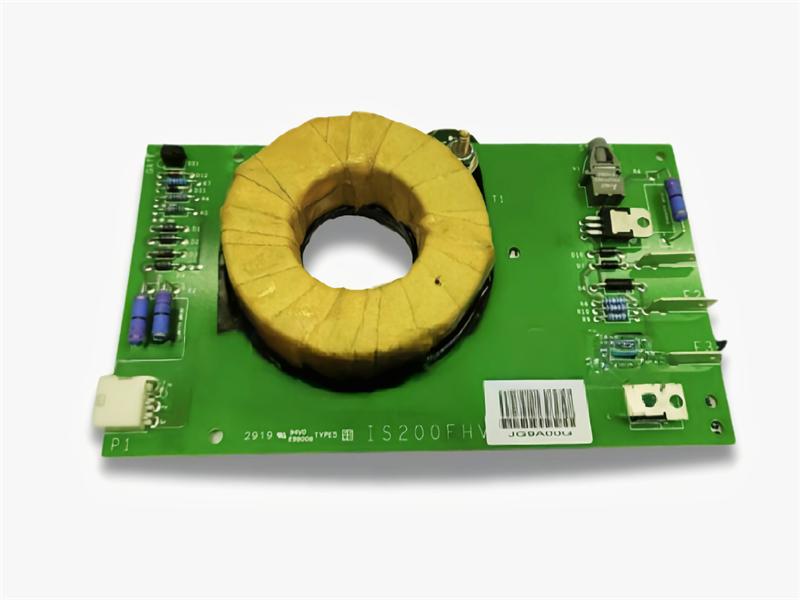

IS200FHVBG1A GE LS2100, High Voltage Gate Interface Board

Description:

The High Voltage Gate Interface Board IS200FHVBG1A is a component of the LS2100 Series, which is manufactured by General Electric Industrial Systems. This specific model serves critical functions in cell voltage monitoring and SCR (Silicon-Controlled Rectifier) gate interfaces. The board is equipped with current sensors that can discern whether the SCRs are in a blocking or conducting state. If an SCR blocking voltage is detected, the cell status data will be transmitted to the FGPA board, prompting the activation of the red C STAT LED. Typically, this board is installed within the Source Bridge Cabinet during assembly.

Additionally, the IS200FHVBG1A incorporates various circuits designed for use within the Load Commutated Inverter, necessitating one FHVB per SCR. Among the potential risks associated with the FHVB board is overvoltage exposure, which could lead to burns or electrical shocks.

Datasheet Link:

IS200FHVBG1A GE LS2100, High Voltage Gate Interface Board PDF Datasheet
