IS200EXMDG1A GE EX2100, Exciter MD Feedback Board

Description:

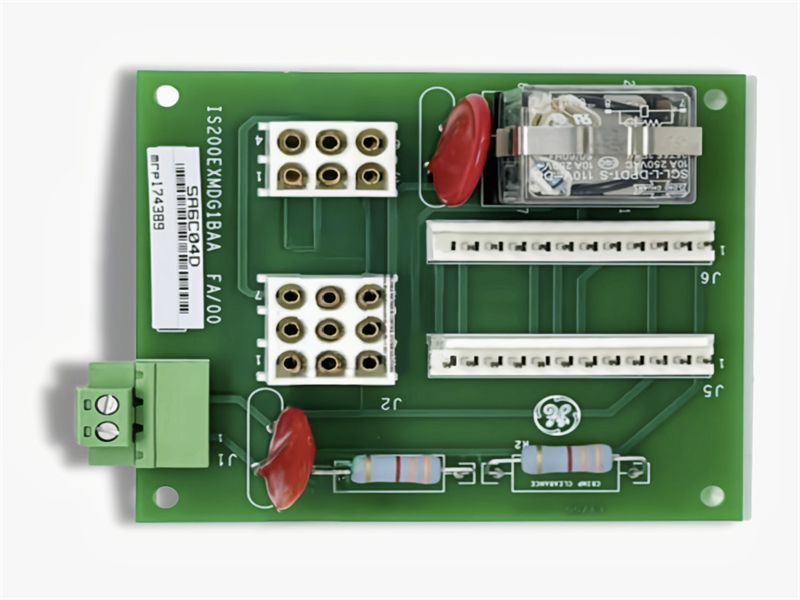

The Exciter MD Feedback Board IS200EXMDG1A, produced by General Electric Industrial Systems for the EX2100 series of models, is the first of two EXDM boards. This model is generally small in appearance and has several components on the board which include two metal oxide varistors (MOVs), a relay, and one resistor. Every board component on the IS200EXMDG1A model has a reference designator that is printed on the surface of the board.

There are a set of connectors on the board known as Augat connectors, these connectors are three-by-three and two-by-three. There are also two vertical pin connectors, which are varying sizes as well as a connector that is right-angled, there are also two female connection points and two male pins.

Datasheet Link:

IS200EXMDG1A GE EX2100, Exciter MD Feedback Board PDF Datasheet
