IS200EBKPG1C GE EX2100, EXCITER CONTROL BACKPLANE

GE EX2100 IS200EBKPG1C, EXCITER CONTROL BACKPLANE in stock.
  • Item NO.:

    IS200EBKPG1C
  • Payment:

    T/T
  • Price:

    $4230
  • Product Origin:

    USA
  • Shipping Port:

    Xiamen
  • Lead Time:

    5-7 days
  • Goods Stock:

    2
  • Product weight:

    0.4 kg

Manufacture
GE
Model
IS200EBKPG1C
PN No. IS200EBKPG1C
Catalog
EX2100
Description
EXCITER CONTROL BACKPLANE
Origin USA
HS CODE 85389091
Dimension 17.5*8*4.62 (CM)
Weight 0.4 kg

Description:

The IS200EBKPG1C is a specialized component crafted by General Electric, designed as the Rack Backplane Exciter Control Module within the EX2100 series for excitation control systems. This module serves as the structural and electrical backbone for the control boards, integrating them via a comprehensive array of connectors tailored for I/O terminal board interfacing.

Structurally, the IS200EBKPG1C is divided into three distinct sections: M1, M2, and C, each catering to different controllers. Both sections M1 and M2 incorporate identical sets of circuit boards, namely ACLA, DSPX, EISB, EMIO, and ESEL, ensuring redundancy and reliability in their respective functionalities. Conversely, section C streamlines its design with a selection of DSPX, EISB, and EMIO boards, focusing on core functions without redundancy.

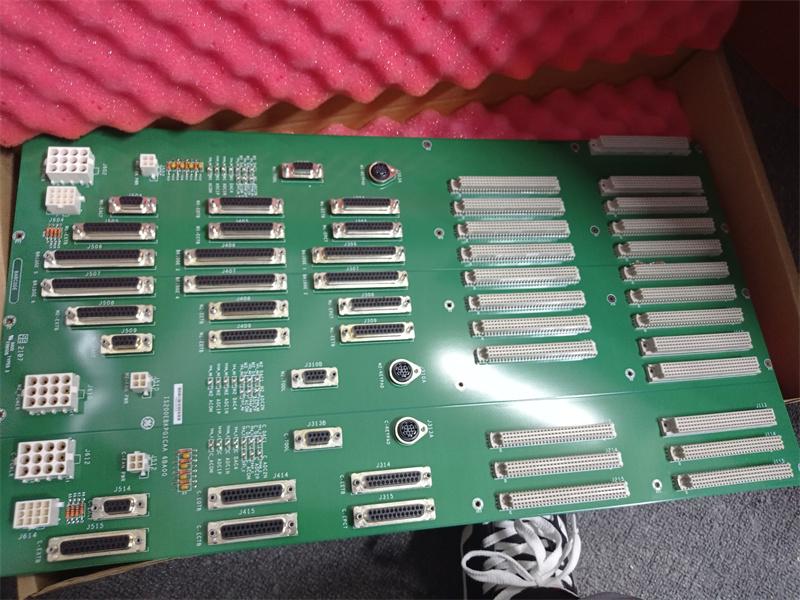

Mounted securely within a dedicated rack, the EBKP module cradles these control boards beneath two cooling fans strategically positioned at the top to facilitate efficient heat dissipation. The upper region of this backplane hosts 24 DIN connectors, integral to the module's connectivity infrastructure. Descending to the lower portion, one encounters an intricate arrangement comprising 27 D-SUB connectors, three circular DIN ports, trios of 12-pin power supply receptacles, fan power plugs, and a total of 30 test points meticulously placed for diagnostic purposes.

Notably, the EBKP board eschews traditional LED indicators or adjustable components, adopting a minimalist design philosophy that prioritizes functionality over visual feedback. Instead, it emphasizes diagnostic capabilities through the inclusion of strategically positioned test points. These test points are instrumental in accessing signals for in-depth diagnostic analysis, encompassing both analog-to-digital and digital-to-analog conversion processes, thereby enhancing maintenance efficiency and system troubleshooting precision.
