IS200DSPXH1BBD GE EX2100, Digital Signal Processor Control Board

Description:

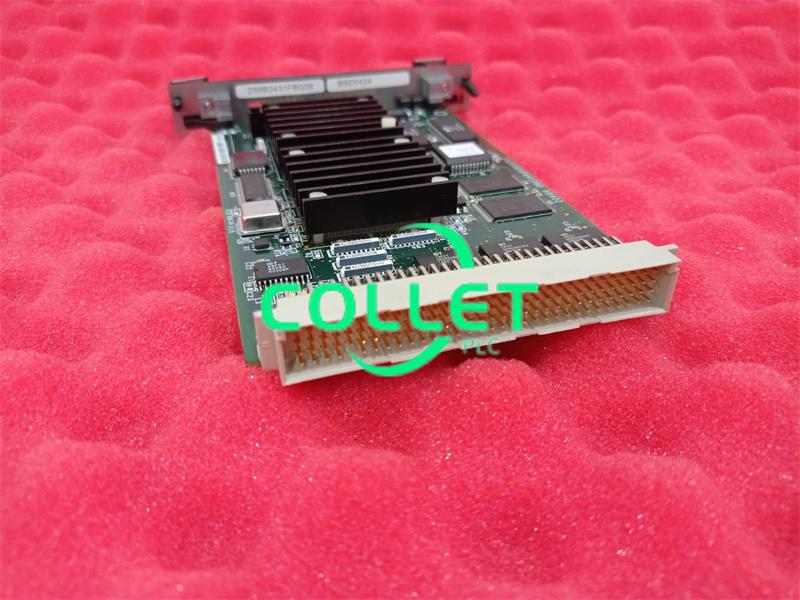

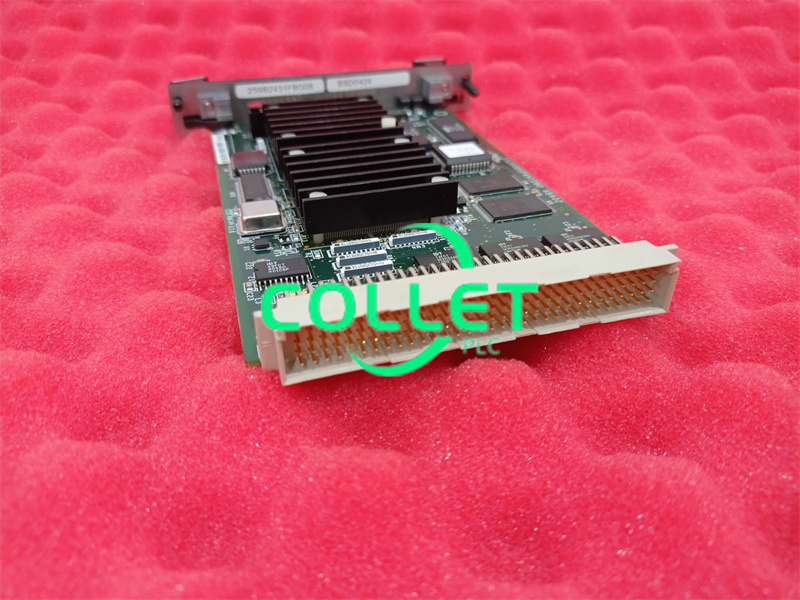

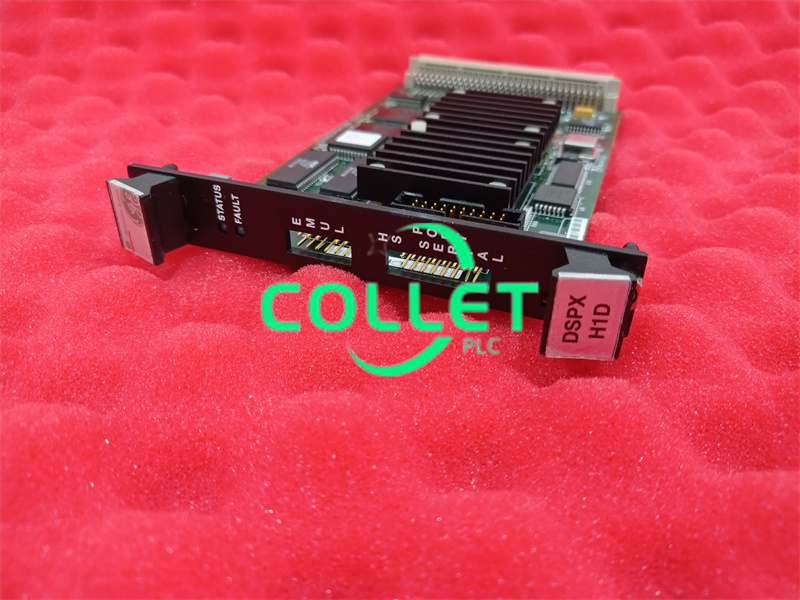

IS200DSPXH1BBD is a digital signal processor control board, manufactured by GE.
The IS200DSPX Digital Signal Processor Control Board (DSPX) is the primary controller for the bridge and motor regulator and gating functions for Innovation Seriese drives. It also controls generator field control functions for the EX2100e Excitation Control.
The board provides logic, processing, and interface functions. The DSPX board includes a high performance digital signal processor (DSP), standard memory components, and an application specific integrated circuit (ASIC) that performs custom logic functions, as shown in Figure 1.

Datasheet Link:

IS200DSPXH1BBD GE EX2100, Digital Signal Processor Control Board PDF Datasheet
