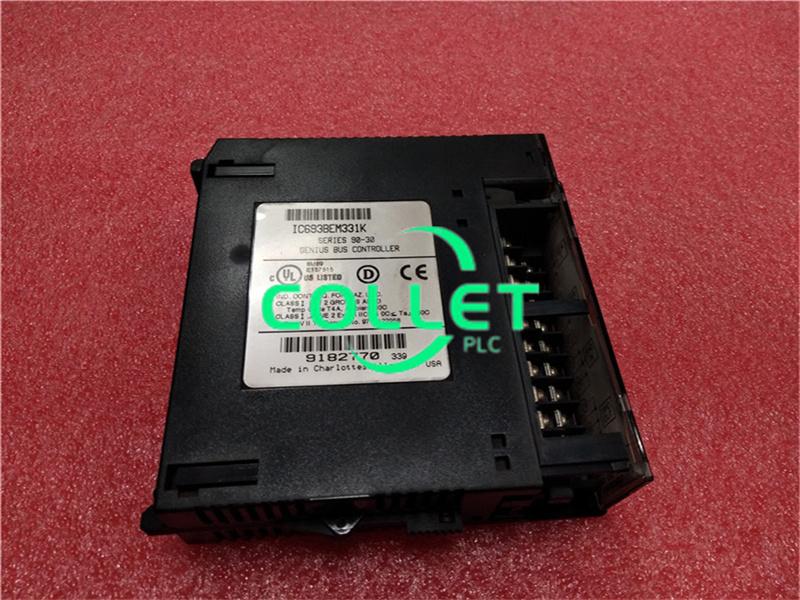

IC693BEM331 GE Fanuc, Series 90-30 Genius Bus Controller

Description:

IC693BEM331 is a Series 90-30 Genius Bus Controller, manufactured by GE.
Ordering information: IC693BEM331
Moduletype: Series 90-30 PLC module, providing Genius Global Data communications, Genius background communications and I/O control with up to 31 other devices.
Quantityper PLC: Up to 8 GBCs in a PLC system with release 5.0 or later firmware and Logicmaster 90 software.
Current consumption: <300mA at +5VDC
Global data length per GBC
Transmitted: Up to 128 bytes.
Received: Up to 128 bytes each from up to 31 other devices.
Output data length per GBC: Up to 128 bytes transmitted to each of up to 31 other devices.
Input data length per GBC: Up to 128 bytes received from each of up to 31 other devices
Series 90-30 PLC, memory types for globaldata: %G, %I, %Q, %AI, %AQ, %R,
LEDs: OK, COMM OK
Software diagnostics: Status bits, Fault Reporting to Series 90-30 PLC

Frequently Asked Questions:

1.What is the maximum number of devices and the maximum amount of control data that the GBC can handle on the Genius bus?
The GBC receives and transmits control data of up to 128 bytes for up to 31 devices on the Genius bus.

2.When does the warranty period start?
One year from the time the client receives the goods

Datasheet Link:

IC693BEM331 GE Fanuc, Series 90-30 Genius Bus Controller PDF Datasheet
