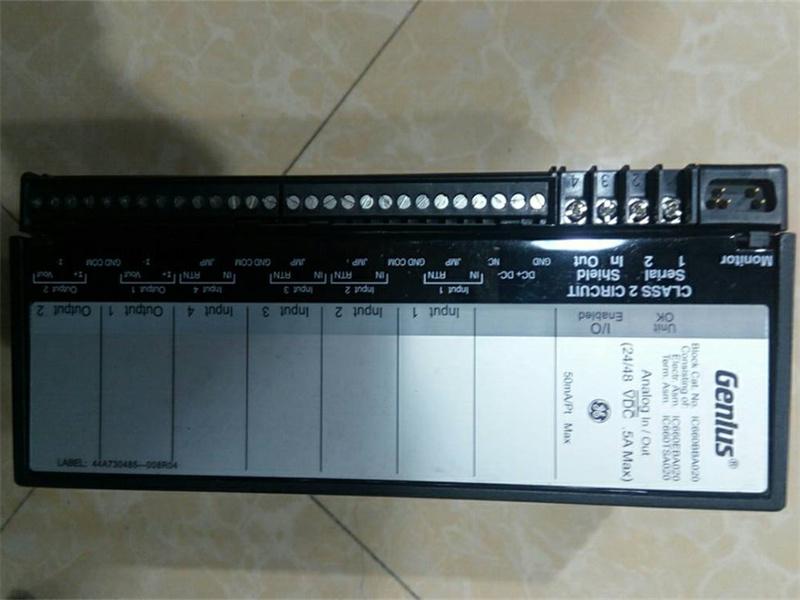

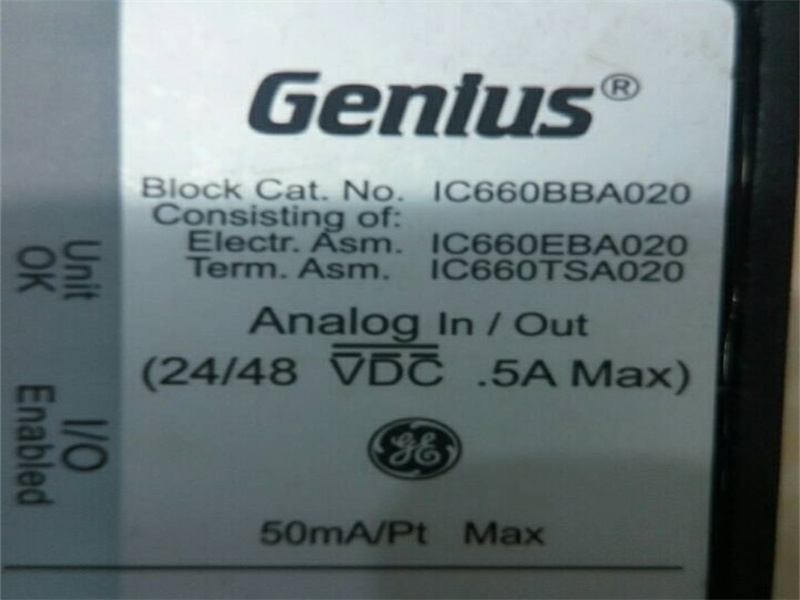

IC660BBA020 GE Mark I & II, Voltage/Current Combination I/O Module

Description:

The IC660BBA020 is a voltage/current combined I/O module designed and manufactured by General Electric, forming part of the Mark II series used in GE Speedtronic control systems. This module is a specialized analog I/O device featuring four analog input channels capable of handling various input signals including 0-10 VDC, 10 VDC to 5 VDC, 0-5 VDC, and 4-20 mA (or 1-5 VDC). It also includes two analog output channels that support the same range of voltages and currents. The module comes equipped with an integrated converter circuit offering 12-bit resolution and a sign bit. It operates independently, with a power input range of 18-56 VDC, typically 24 VDC.
Designed to support Genius Bus protocol, this module can exchange I/O data over a network with a Genius Bus master. Each channel updates every 4 milliseconds and features software-adjustable filter responses settable to none, 8, 16, 32, 64, 128, 256, 512, or 1024 milliseconds. These input filters help stabilize received signals and reduce fluctuations for more accurate readings.
The IC660BBA020 analog I/O module is part of GE Fanuc's I/O product line, featuring four input circuits and two output circuits available in two module versions. This module supports five analog power ranges: 0 ~ 10v DC, -5v DC ~ +5v DC, -10v DC ~ +10v DC, 0 ~ 5v DC, and 4 ~ 20mA (or 1 ~ 5v DC).
At a temperature of 25 degrees Celsius, the module typically experiences a thermal drift of 10 PPM per degree Celsius. Users can utilize any GE Fanuc IC66 handheld monitor with this module, which also provides advanced diagnostic capabilities to generate fault information.

Frequently Asked Questions:

1.What is number of input and input signals?

No. of Inputs: 4
Input Signals: 0–10 VDC

2.What are specifications of power supply?
Power Supply Voltage: 24 V dc
Block to Block Isolation: 1500 Volts
Supply Voltage Range: 18-56 VDC
Block Power: 24/48 Volts DC

Datasheet Link:

IC660BBA020 GE Mark I & II, Voltage/Current Combination I/O Module PDF Datasheet
