Manufacture |
HIMA |
|
Model |
F7546 |
| PN No. |
F7546 |
|
Catalog |
H41q |
|
Description |
Bus Termination |
| Origin | Germany |
| HS CODE |
85389091 |
| Dimension |
5*3*2 (CM) |
| Weight | 0.04 kg |
Description:

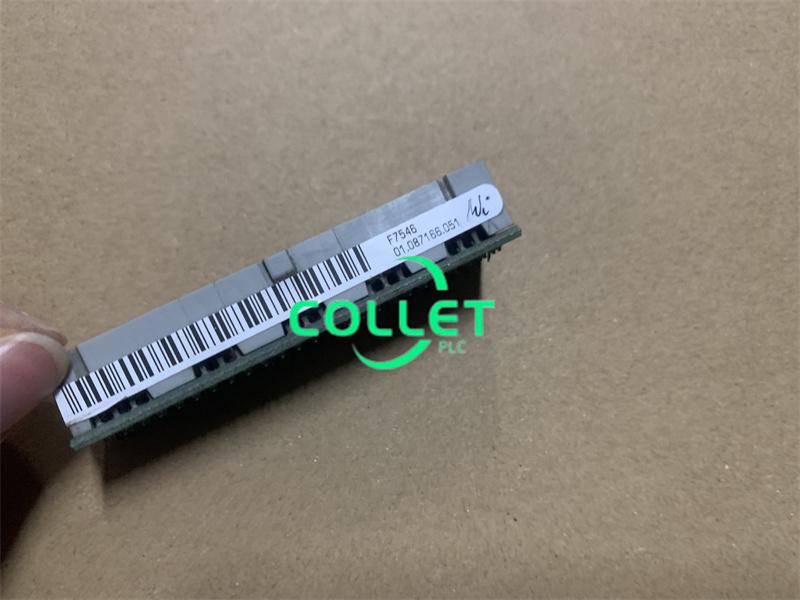

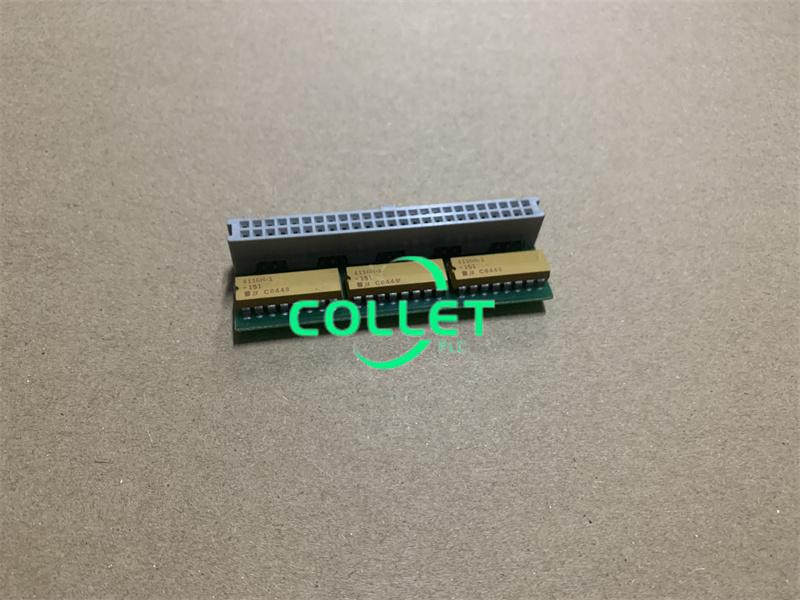

The F7546 is a bus termination, manufactured by HIMA.
An F7546 bus termination subassembly is plugged into the XD. 2 connector of the last I/O module subrack to terminate the I/O bus.
The I/O bus coupling modules are already integrated in the central rack. With the I/O subrack the connection to the I/O bus is via a coupling module F7553 installed in slot 17. The connection of the bus between the individual subracks is established at the rear side via the BV 7032 data cable. To terminate the I/O bus, an F7546 module is plugged in at the beginning and the end.
Frequently Asked Questions:
1.What is power supply of F7546?
6.3AMP 18-36VDC IN 24VDC OUT
2.What is the related products?
F7553/ BV7032
3.When does the warranty period start?
One year from the time the client receives the goods.
Datasheet Link:
F7546 HIMA H41q, Bus Termination PDF Datasheet
