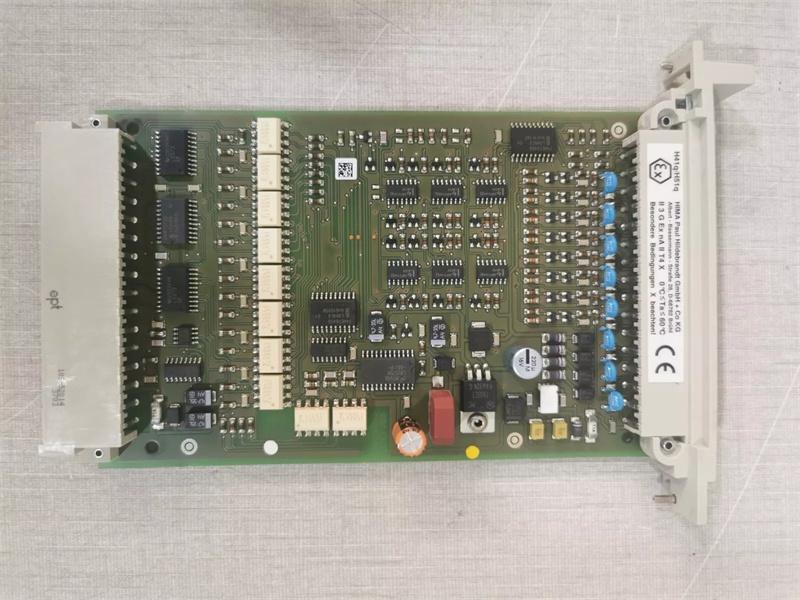

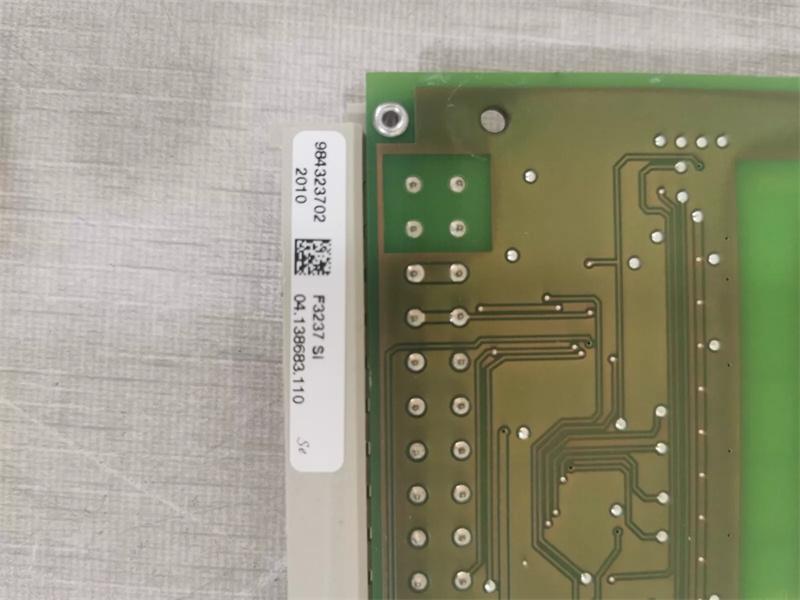

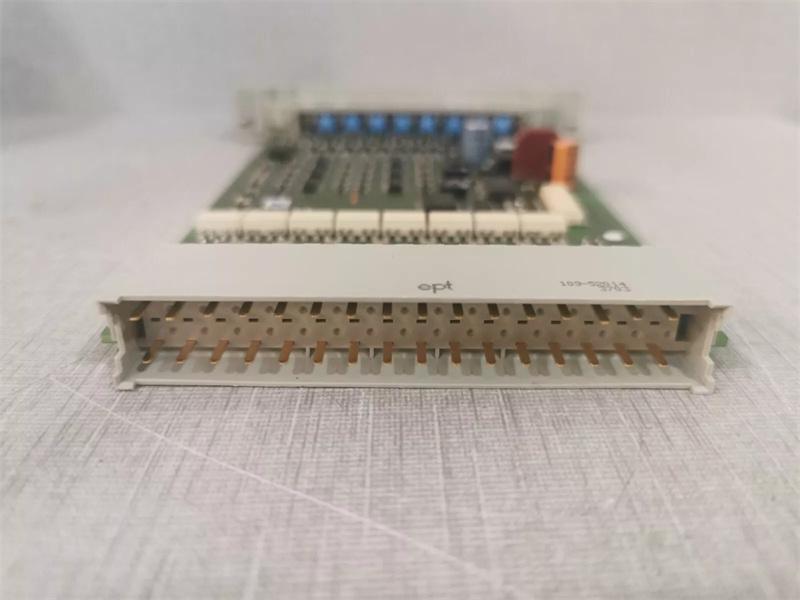

F3237 HIMA 984323702-8 Fold Input Module

Description:

The module is automatically tested completely during operation. The main
test routines are:
- Switch on and switch off cability
- Crosstalk of the input circuits by walking 0 test
- Function of the input filters
- Correct function of the module
- Short circuit and wire break of the sensor line
Function of LEDs are not tested.
Appertaining softw. building block: HB-RTE-. (for current version refer to
the description of the operating system).
Switching time approx. 10 ms
Operating points IE
 0 signal 0.35 ≤ IE ≤ 1.2 mA
 1 signal 2.1 ≤ IE ≤ 6.0 mA
 wire break ≤ 0.28 mA
 short circuit ≥ 6.5 mA
Line impedance ≤ 50 Ohm (acc. to DIN 19234)
Line length ≤ 1000 m (∅ = 0.5 mm2)
Supply voltage US 8.2 V
Shunt R* 681 Ohm; 1 %; 0.25 W
(R17 ... R24) part no. 00 0751681
Space requirement 4 TE
Operating data 5 V =: 90 mA; 24 V =: 170 mA

Proximity switches outside the DIN 19234 standard

Different proximity switches are not according to the DIN 19234 standard.
E. g. the proximity switch type NJ 5 - 30GK - S1N of the P&F company delivers a very low current in the non-damped state. This effects the reaction
of the line break supervision of the F 3237 module
Nevertheless to guarantee a correct function also in this case it is possible
to increase the output current of the proximity switch to 170 µA in the nondamped state by switching in parallel a resistor of 47 kΩ.
There are no limitations concerning the using in fail safe circuits because
a break of the resistor would be signalled like a line break. Also a real line
break will be detected as before.
