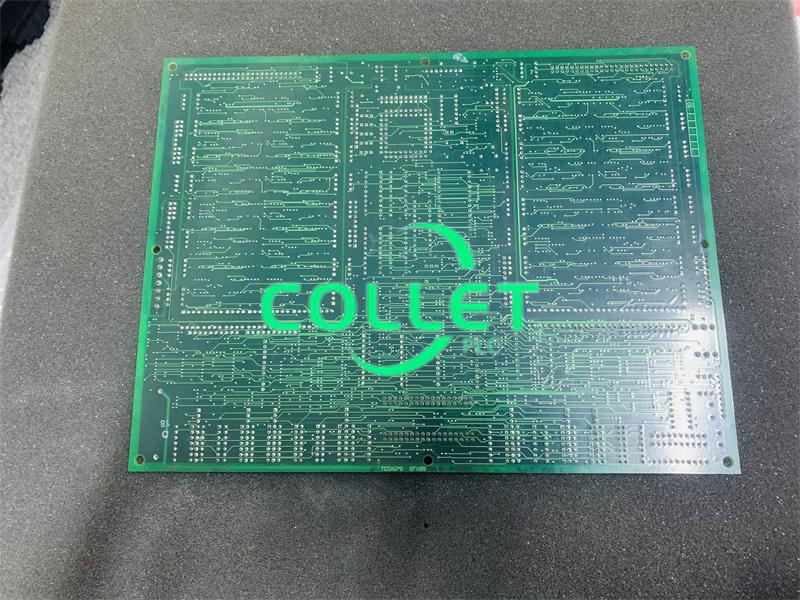

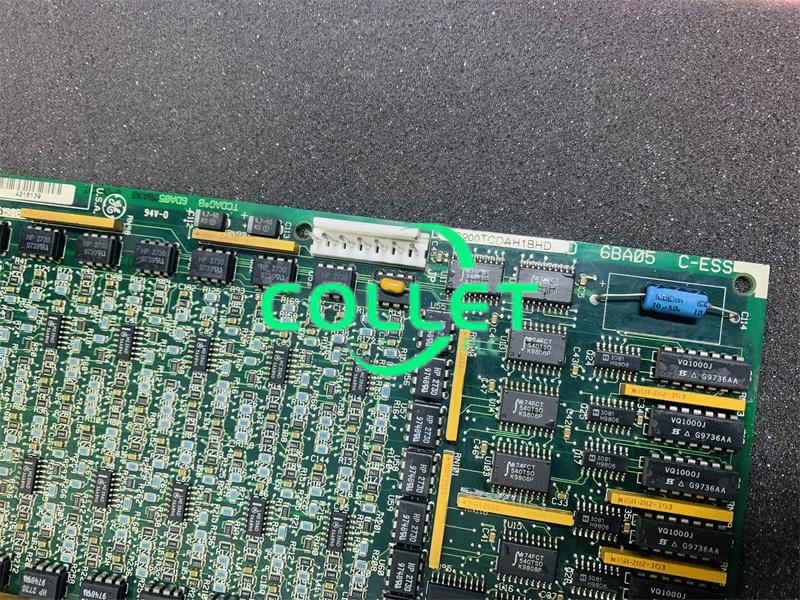

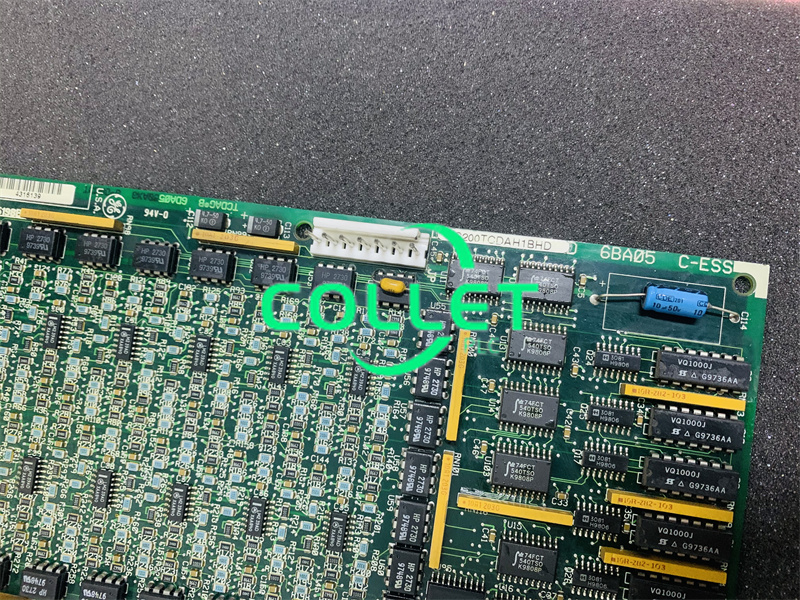

DS200TCDAH1B GE Digital I/O Board

Description:

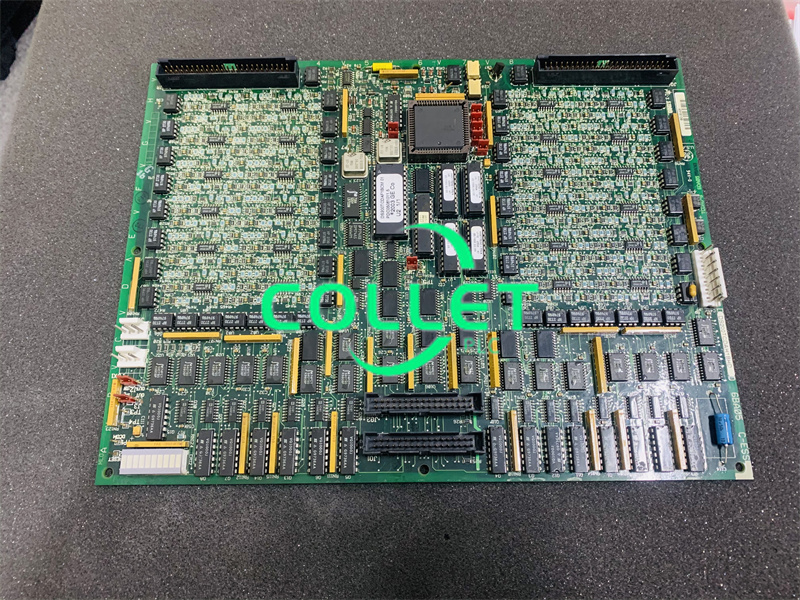

The GE Digital I/O Board DS200TCDAH1B contains a microprocessor and several programmable read-only memory (PROM) modules. It also includes a block of 10 LEDs and two 50-pin connectors. Additionally, the board has eight jumpers and one visible LED on its side. Two 3-pin connectors are also present on the board. The ID JX1 is located on one of the three-pin connectors, while the ID JX2 is on the other.

Each of the eight jumpers is assigned an ID with the prefix "JP." For example, one jumper has the ID JP1, another has the ID JP2, and so on. Similarly, the test points have IDs with the prefix "TP." One test point is labeled as TP1, another as TP2, and so forth. These test points allow a technician to diagnose issues within the individual circuits on the board using a specialized testing device.

Other boards installed in the system include the DS200DTBA and DS200DTBB. Both these boards receive signals from the GE Digital I/O Board DS200TCDAH1B via the 50-pin connectors. The ID JQ is associated with one 50-pin connector, while the ID JR is associated with the other. On the DS200DTBA board, the JQ connector links to the JQR connector. The communication between these boards occurs through 50-pin ribbon cables. The contact input signal from DS200DTBB is received by the connector identified by the ID JR.
