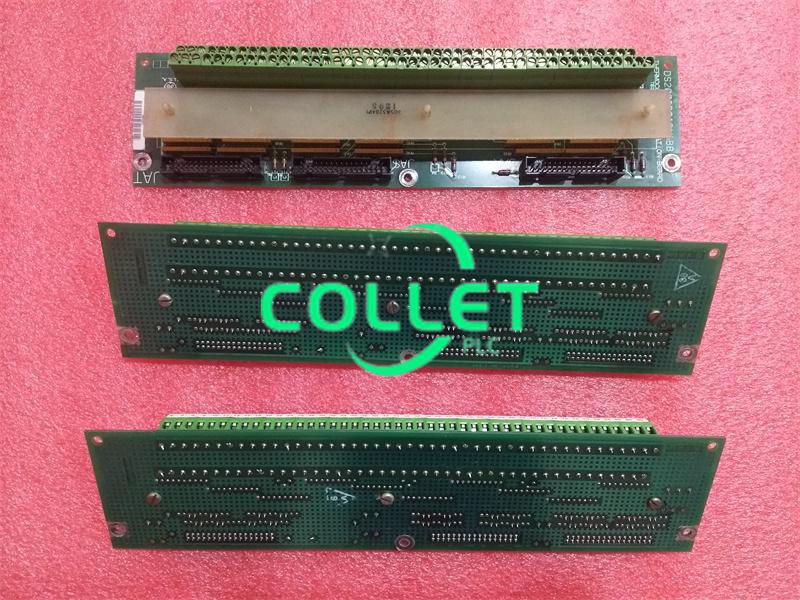

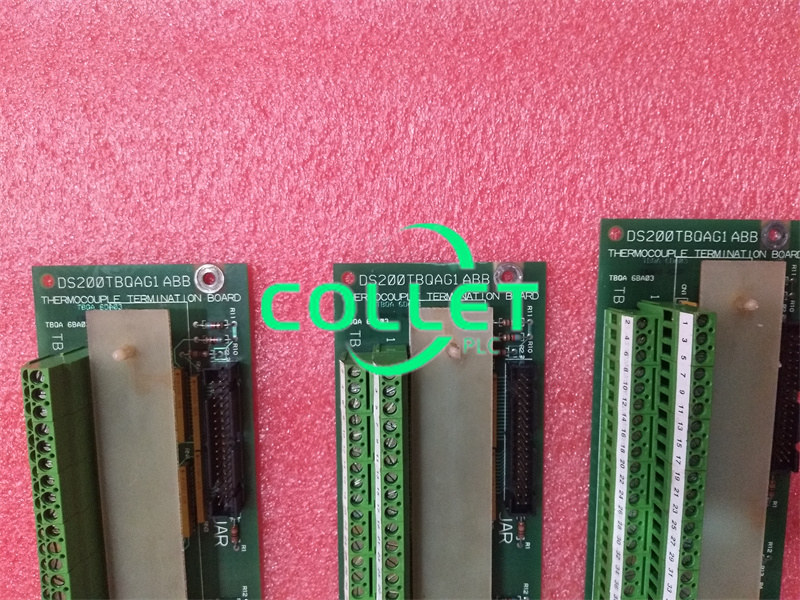

DS200TBQAG1A GE MKV, Thermocouple Terminal Board

Description:

The Thermocouple Termination Module (TBQA) is located in the <R1> and <R5>cores. The TBQA terminal board can receive 45 thermocouple input signals. The TBOA in <R1>, distributes its input signals as follows: 15 signals (thermocouples #1 through #15) to TCQA in <R1>, 15 signals (thermocouples #16 through #30) to TCQA in <R2> core, and 15 signals (thermocouples #3l through #45) to TCQA in<R3>. The TBQA board in <R5> can receive 42 thermocouple input signals, which are all connected to the TCCA board in <R5>. The TBQA board also provides the cold junction compensation circuits.

TBQA Connections
JAR- From the <R1> core, writes thermocouple signals #1 through #15 and cold junction signal to the TCQA board in the <R1> core. From the <R5> core, writes the thermocouple signals #1 through #15 and the cold junction signal to the TCCA boardin the <R5> core.
JAS - From the <R1> core, writes thermocouple signals #16 through #30 and cold junction signal to the TCQA board in the <R2> core. From the <R5> core, writes the thermocouple signals #16 through #30 and cold junction signal to the TCCA board inthe <R5> core.

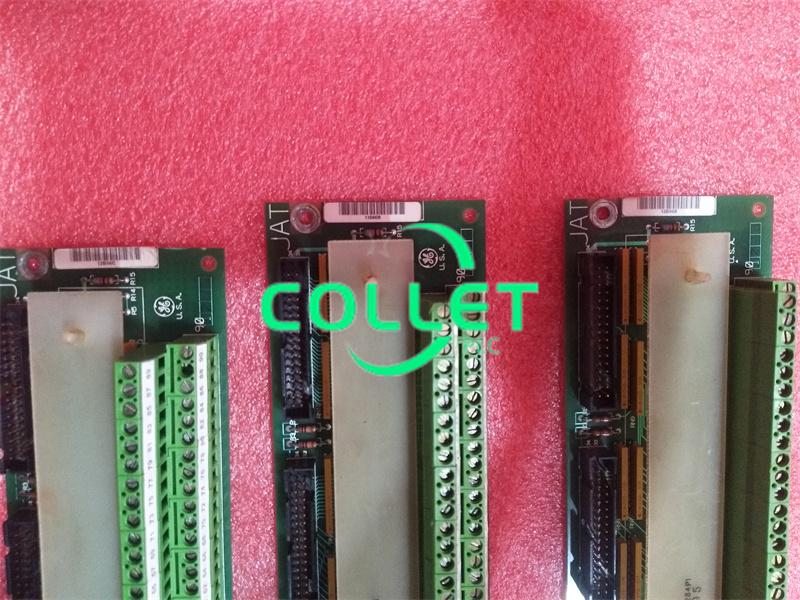

JAT - From the <R1> core, writes thermocouple signals #31 through #45 and cold junction signal to the TCQA board in the <R3> core. From the <R5> core, writes the thermocouple signals #31 through #42 and cold junction signal to the TCCA board inthe <R5> core.
The hardware document in Appendix B and the signal flow diagrams in Appendix D have more specific information about connectors on this terminal board.

Frequently Asked Questions:

1.How about DS200TBQAG1A hardware configuration?
There are no hardware jumpers on the TBQA terminal board.

2.What is the payment term?
Wire transfer only.

3.When does the warranty period start?
One year from the time the client receives the goods.

Datasheet Link:

DS200TBQAG1A GE MKV, Thermocouple Terminal Board PDF Datasheet
