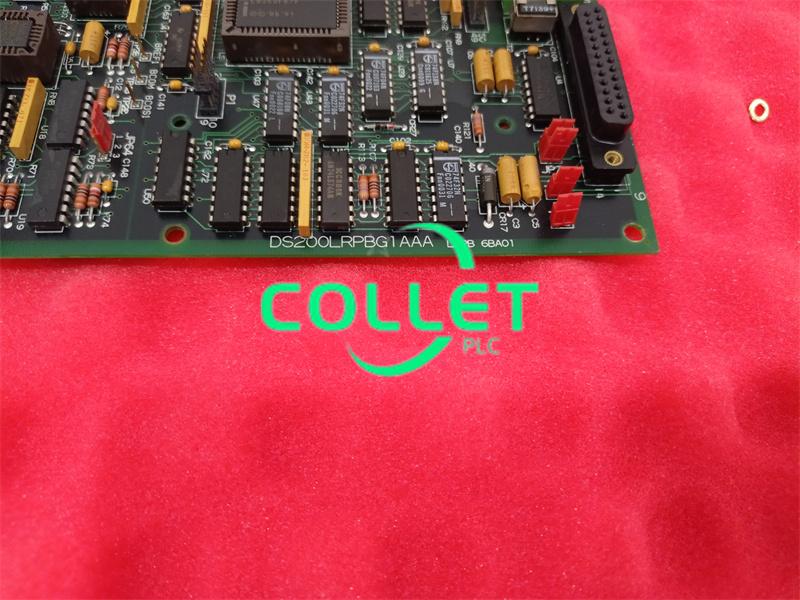

DS200LRPBG1AAA GE MarkV Resolver Board

Description:

The DS200LRPBG1AAA is a GE circuit board component designed for the modular Mark V Speedtronic system, specifically serving as a Resolver Board. This board is an updated version of the original DS200LRPBG1 Resolver Board and includes three A-rated product revisions. The Mark V system, developed by General Electric, is used for managing gas and steam turbine systems in both TMR (triple modular redundant) and Simplex configurations, offering high reliability through software-implemented fault tolerance. The MK V features built-in diagnostic capabilities, online maintenance, and a direct sensor interface.

The DS200LRPBG1AAA Resolver Board can be purchased from AX Control as a refurbished and fully tested unit, ready to ship. This board contains various hardware components such as terminal strips, integrated circuits, jumper switches, resistor networks, potentiometers, and high-voltage electrolytic capacitors. It also includes Field Programmable Gate Arrays (FPGAs), a push-button reset switch for diagnostic purposes, heat sinks, inductor coils, a transformer, and an LED panel for diagnostic testing and fault code comprehension.

Despite some gaps in the original instructional documentation, the functional product number provides additional information about the DS200LRPBG1AAA, including its domestic manufacture location, typical assembly style of the Mark V Series, the LRPB functional product acronym, standard PCB coating, Group One Mark V Series grouping, and the three significant A-rated product revisions.

Datasheet Link:

DS200LRPBG1AAA GE MarkV Resolver Board PDF Datasheet
