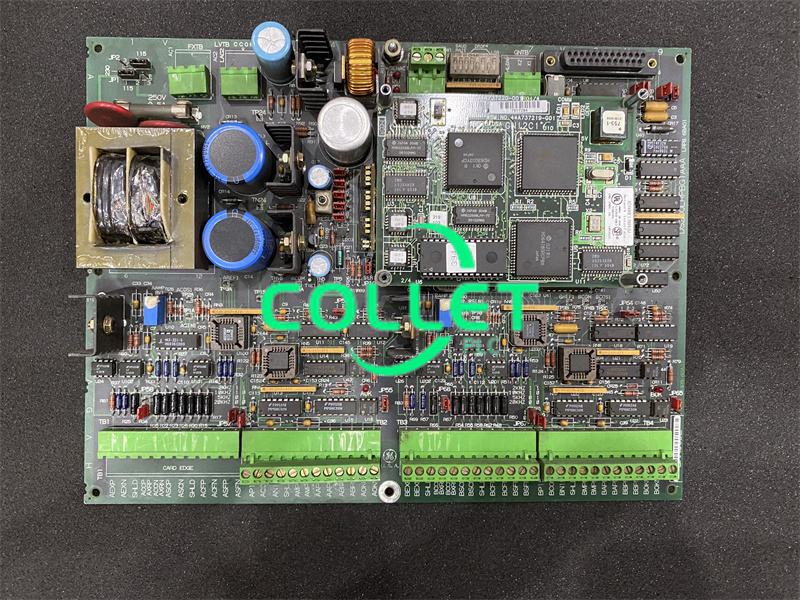

DS200LRPBG1A GE MarkV Resolver Board

Description:

Functional Description
The DS200LRPBG1A, crafted and conceptualized by General Electric, stands as a sophisticated Resolver Card within the esteemed Drive Control Series. This series integrates advanced digital microprocessor modules to bolster their operational prowess. A hallmark of this model is its adoption of SIFT (Software-Implemented Fault Tolerance), an innovation devised to amplify the performance capabilities of turbine systems. The primary functions of these control units are categorized into three main areas: C for communication, P for protection, and PD for power distribution, offering diverse configurations to accommodate extensive input and output requirements.

Features
Central to the Mark V series, this board plays a pivotal role in regulating hydro-electric turbine systems. Within the comprehensive Mark V framework, it oversees a multitude of tasks such as speed modulation, temperature surveillance, and fire prevention mechanisms. Specifically, it serves as a resolver card circuit board, integral to the system's intricate operations.

Designed with user convenience in mind, the board boasts easily accessible terminal strips that facilitate rapid I/O linkages. Its architecture also includes adjustable jumper settings, empowering users to tailor the board's functionality to their specific needs. Furthermore, the unit's design prioritizes thermal management, incorporating numerous heat sinks to efficiently dissipate heat generated by components, ensuring optimal performance and longevity.
