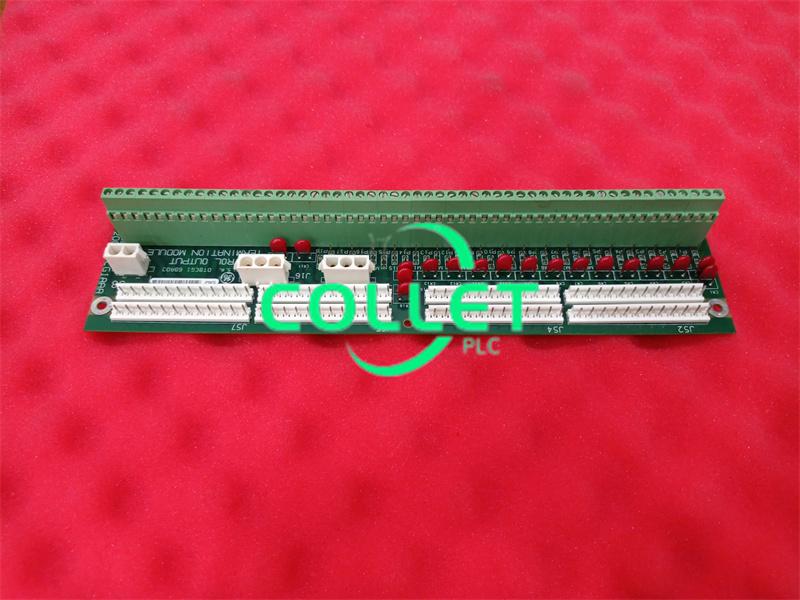

DS200DTBCG1A GE MKV, Terminal Board, Relay/Solenoid

DS200DTBCG1A GE MKV, Terminal Board, Relay/Solenoid
  • Item NO.:

    DS200DTBCG1A
  • Payment:

    T/T
  • Market Price:

    $6000
  • Product Origin:

    USA
  • Shipping Port:

    Xiamen
  • Lead Time:

    5-7 days
  • Goods Stock:

    5
  • Product weight:

    1.1 kg
Manufacture
GE
Model
DS200DTBCG1A
PN No. DS200DTBCG1A
Catalog
MKV
Description
Terminal Board, Relay/Solenoid
Origin USA
HS CODE 85389091
Dimension 26*16*5 (CM)
Weight 1.1 kg

Description:

DS200DTBCG1A GE MKV, Terminal Board, Relay/Solenoid

DS200DTBC-Contact Output Termination Module
The Contact Output Termination Module (DTBC) is located in <Q11>, <Q21> and<05l>. DTBC is connected to the 30 relays on the TCRA in location four of<Q21>and <Q5l>. Eighteen ofthe 30 outputs on DTBC in <Q5l> can be configured assolenoids using hardware jumpers on DTBC. The DTBC in <Q11> is connected tothe four contact output relays on the TCRA in location for of <Q11>. The hardwarejumpers on the <Q1l> DTBC are specially configured for gas manifold blow-offvalve control.
DTBC Connectors
JS1 through JS8 - Reads the relay signals from the TCRA board in location four.

J8- Receives the power for the solenoids fiom the TCPD board in the <PD> core.

J15-Connects to Jl6 to carry 125 V dc power for contact outputs #l6, #17, and#18. Not typically used on the <Q11> core.
J16-Connects to Jl5 to carry 125 V de power for contact outputs #l6, #17, and#18. Can only be connected in the <Q5l> core. Not typically used on the <Q11>core.

The hardware document in Appendix B and the signal flow diagrams in Appendix Dhave more specific information about connectors on this terminal board.

DTBC Hardware Configuration
P1/M1 through P18/M18- Solenoid enable for contact outputs #1 through #18 re-spectively. Both must be in to enable the solenoid power, or both out to disable it.The configuration of the <Q1l> DTBC for gas manifold blow-off valve control doesnot follow this convention, refer to Appendix D for the proper configuration ofthatterminal board
Refer to Appendix A for information on the hardware jumper settings for this board.


Frequently Asked Questions:

1.How many are DTBC connectors?
4(JS1 through JS8;J8;J15;J16)


2.Which plugs on DS200DTBCG1A provide the most power to DS200DTBCG1A's solenoids?
The plugs labeled J8x provide the power to most of the 125 VDC solenoids connected to the DS200DTBCG1A terminal board.


Datasheet Link:

DS200DTBCG1A GE MKV, Terminal Board, Relay/Solenoid PDF Datasheet
