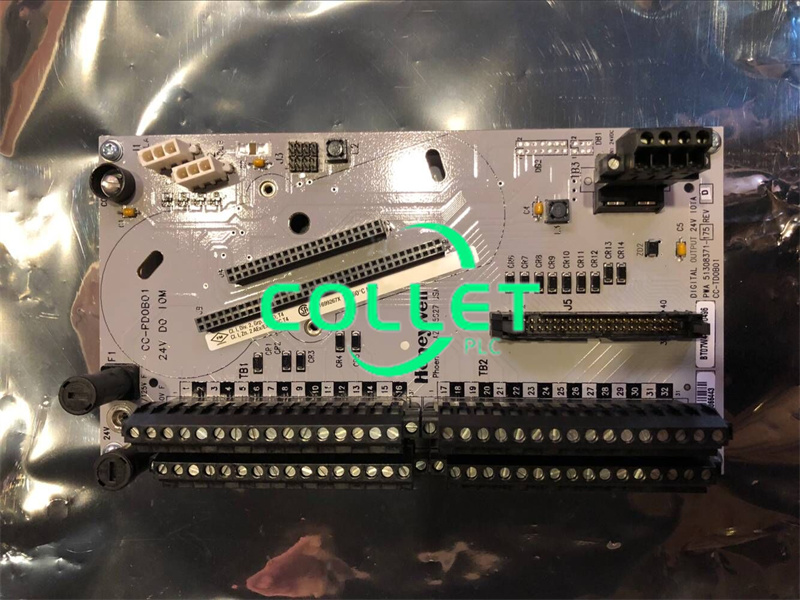

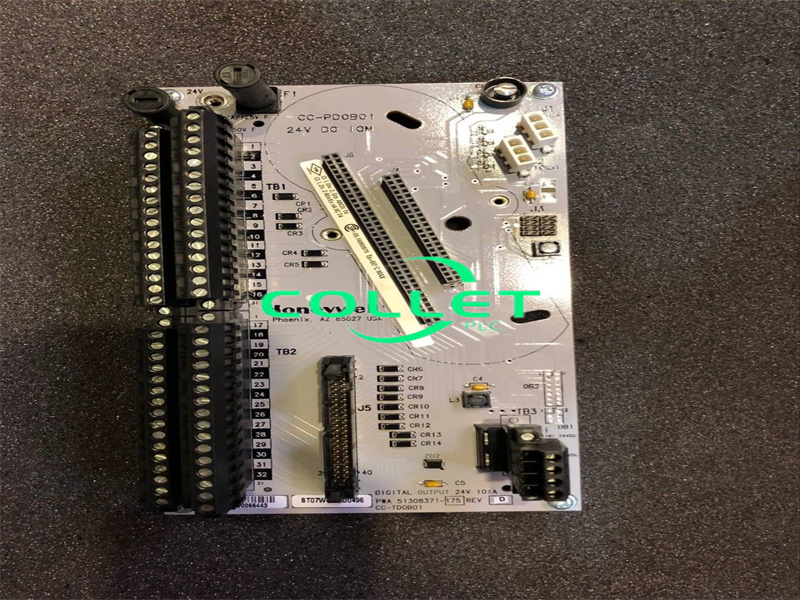

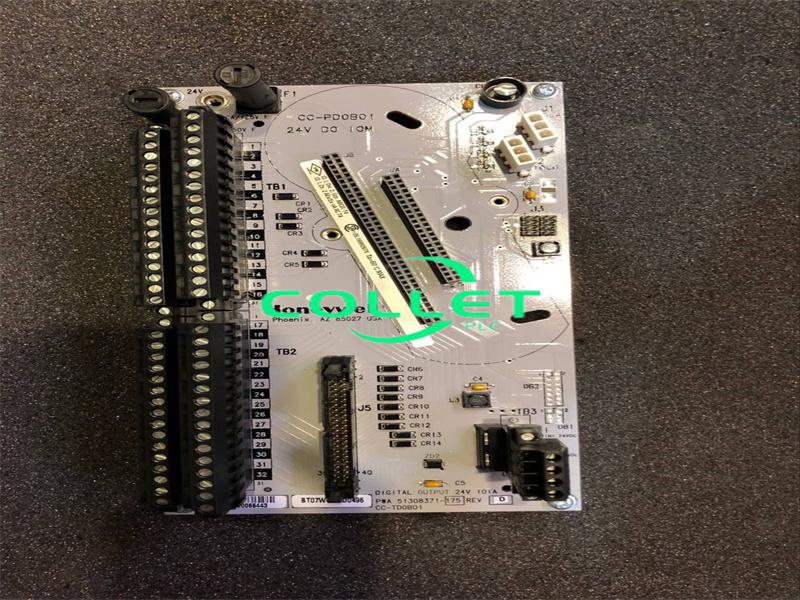

CC-TDOB01 Honeywell Digital Output Module

Description:

The Honeywell CC-TDOB01 is a high-performance digital output module designed for industrial automation applications. This module is integral to distributed control systems (DCS), providing reliable and accurate digital output signals that facilitate seamless integration into various control systems. It is primarily used to convert digital signals from PLCs or controllers into switch signals, enabling the control of actuators such as relays and motors, thus automating industrial processes.

Key Features:
- Multiple Channels: Typically supports 4, 8, or 16 output channels, allowing for flexible configurations to meet diverse application needs.
- Output Type: Provides reliable switch outputs, suitable for controlling various devices.
- Operating Voltage: Designed to operate at 24V DC, ensuring compatibility with standard industrial control systems.
- Temperature Range: Functions effectively in environments ranging from -20°C to +60°C, making it suitable for various industrial conditions.
- Humidity Resistance: Operates in relative humidity levels of 5% to 95%, non-condensing.
- Installation: Easily mounted on DIN rails, simplifying installation and maintenance processes.
- Isolation Design: Features isolation between input and output channels, enhancing the system's resistance to interference.

The CC-TDOB01 module is compliant with IEC 61131-2 standards, ensuring high reliability and performance in demanding industrial environments. It plays a crucial role in data transmission and control within automation systems, effectively managing and monitoring various industrial processes.

Frequently Asked Questions:
1.What is the primary function of the Honeywell CC-TDOB01 module?
The primary function of the Honeywell CC-TDOB01 module is to convert digital signals from PLCs or controllers into switch signals to control actuators such as relays and motors, facilitating automation in industrial processes.

2.What is the operating voltage of the CC-TDOB01 module?
The CC-TDOB01 module operates at a voltage of 24V DC.

3.What is the temperature range in which the CC-TDOB01 can operate?
The CC-TDOB01 can operate effectively in a temperature range from -20°C to +60°C.

Datasheet Link:

CC-TDOB01 Honeywell Digital Output Module PDF Datasheet
