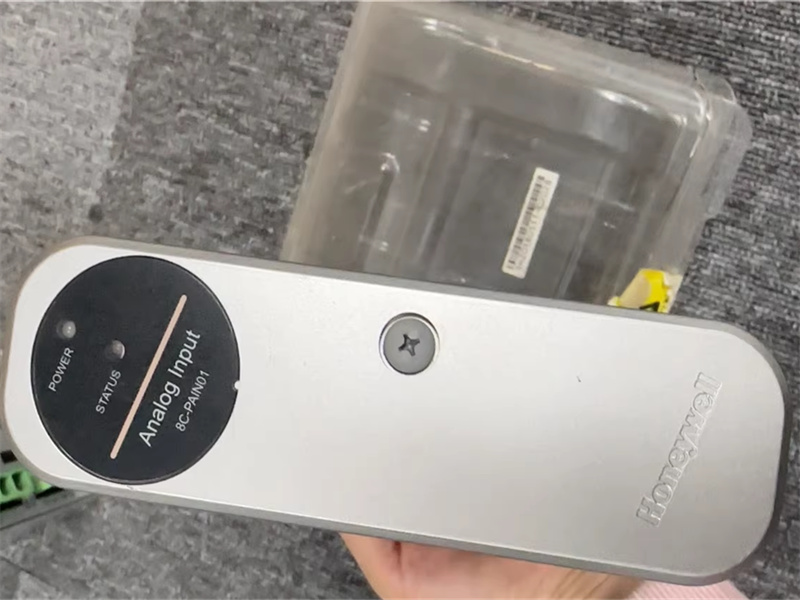

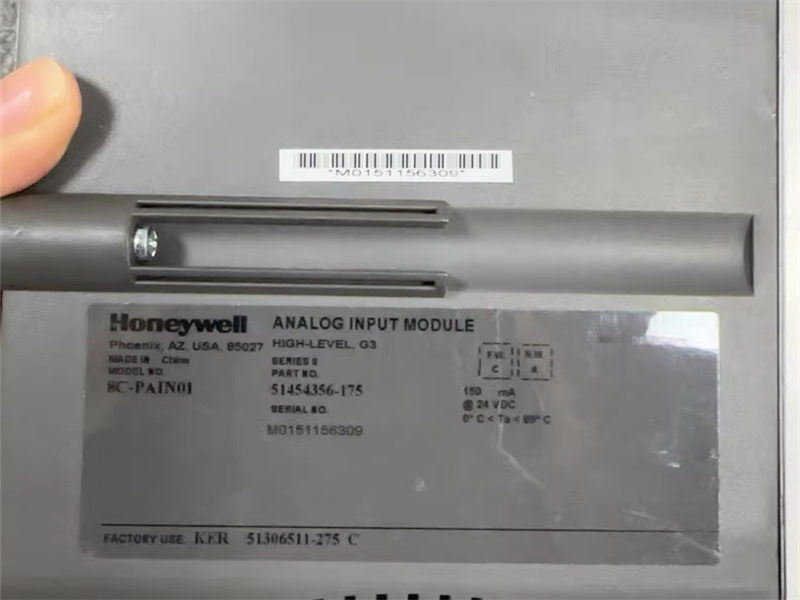

8C-PAIN01 Honeywell Analog Input, Coated

Description:

8C-PAIN01 is an analog input, manufactured by Honeywell.
Function
The Analog Input Module accepts high level current inputs from transmitters and sensing devices.
Notable Features
• Extensive self diagnostics
• Optional redundancy
• Supplies non-incendive field power (No external user supplied field power)
• Fast loop scan
Non-Incendive Power
Non-incendive power is provided with no external marshalling to support the 4-20mA loop and still provide for channel
power protection. This protection supports the Division 2 hazardous protection non-incendive power rating.
Specifications:
Input Type: current (2-wire or self-powered transmitters)
Input Channels: 16 Channels (All 16 Single Ended)
A/D Converter Resolution: 16 bits
Input Range: 4-20 mA (through 200 Ω)
Normal Mode Rejection Ratio, at 60 Hz: 19 dB
Normal Mode Filter Response: Single-pole RC, -3 dB @ 6.5 Hz
Crosstalk, dc to 60 Hz (channel-to-channel): -60 dB
Maximum Input Voltage (any input referenced to common, no damage): ± 30 Volts
Input Scan Rate: 50 ms

Frequently Asked Questions:
1.What is input type of 8C-PAIN01?

current (2-wire or self-powered transmitters)

2.What is normal mode rejection ratio, at 60 Hz

Single-pole RC, -3 dB @ 6.5 Hz

3.When does the warranty period start?

One year from the time the client receives the goods.

Datasheet Link:

8C-PAIN01 Honeywell Analog Input, Coated Datasheet
