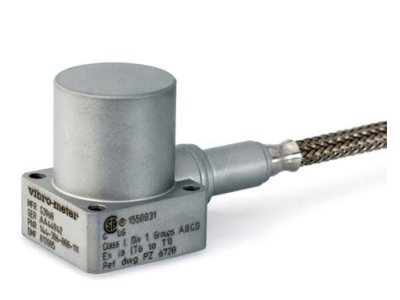

CA306 Vibration 144-306-000-321 Piezoelectric Accelerometer

The CA 306 series of high temperature accelerometers has been designed specifically for gas turbine applications

Item NO.:
CA306
Payment:
T/T
Market Price:
$5600
Product Origin:
Switzerland
Color:
Depends on material
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
2
Product weight:
0.135 KG/M

Inquiry now

product introduction

Manufacture	Vibration
Model	CA306
PN No.	144-306-000-321
Catalog	NIL
Description	Piezoelectric Accelerometer
Origin	Switzerland
HS CODE	85389091
Dimension	5.0822 (CM)
Weight	0.135 kg/m

Description:

The CA 306 series of high temperature accelerometers has been designed specifically for gas turbine applications.

The accelerometers feature a rugged design with hermetically sealed connectors.

An integral mineral insulated (MI) cable with stainless steel overbraid ensures signal integrity even in the most hostile environments.

The differential output signal minimizes noise pick-up due to electrical ground potentials.

A version with side connector is available when an integral cable is not required.

OPERATING
(at 23°C ± 5°C)
Sensitivity (at 120 Hz) : 50 pC/g ± 5%
Dynamic measuring range (random) : 0.01 g to 100 g peak
Overload capacity (spikes) : Up to 200 g peak
Linearity : ±1% over dynamic measuring range
Transverse sensitivity : <5%
Resonant frequency : >15 kHz
Frequency response (typical) : ± 5% between 5 and 3 000 Hz (lower cut-off frequency is determined by
electronics used)
Internal insulation resistance : Min. 109 Ω pole-ground
Min. 109 Ω pole-pole

Order Number:

Type	Length L in mm	Ordering Number
CA306	/	144-306-000-011
CA306	3000 ± 100	144-306-000-111
CA306	6000 ± 150	144-306-000-121
CA306	9000 ± 200	144-306-000-131
CA306	12000 ± 200	144-306-000-141
CA306	3000 ± 100	144-306-000-311
CA306	6000 ± 150	144-306-000-321
CA306	9000 ± 200	144-306-000-331
CA306	12000 ± 200	144-306-000-341

Frequently Asked Questions:

1.What are Temperature range of CA306 144-306-000-321?

(at +23 °C ± 5 °C)Sensitivity (at 120 Hz):100 ± 5 pC / g
Dynamic measuring range (random):0.01 g to 400 g peak
Overload capacity (spikes):Up to 500 g peak
Linearity:± 1% between 0.01 g and 20 g peak, ± 2% up to 400 g peak
Transverse sensitivity:≤ 3%
Resonant frequency (mounted):20 kHz nominal
Frequency response:± 5% between 0.5 Hz and 5 000 Hz (lower cut off frequency is determined by conditioner used)
Capacitance (nominal)
•Pole to pole:4 500 pF for transducer + 105 pF / m of cable
•Pole to casing:10 pF for transducer + 210 pF / m of cable

2.What are general datas of CA306 144-306-000-321?

Input power requirements : None
Signal transmission : 2 pole system insulated from casing, charge output
Signal processing : Charge amplifier

Datasheet Link:

CA306 Vibration 144-306-000-321 Piezoelectric Accelerometer PDF Datasheet
