TQ402 Vibration 111-402-000-013 A1-B1-C160-D000-E010-F0-G000-H10 Proximity Transducer

Description:

TQ402 Vibration 111-402-000-013 A1-B1-C160-D000-E010-F0-G000-H10 Proximity Transducer

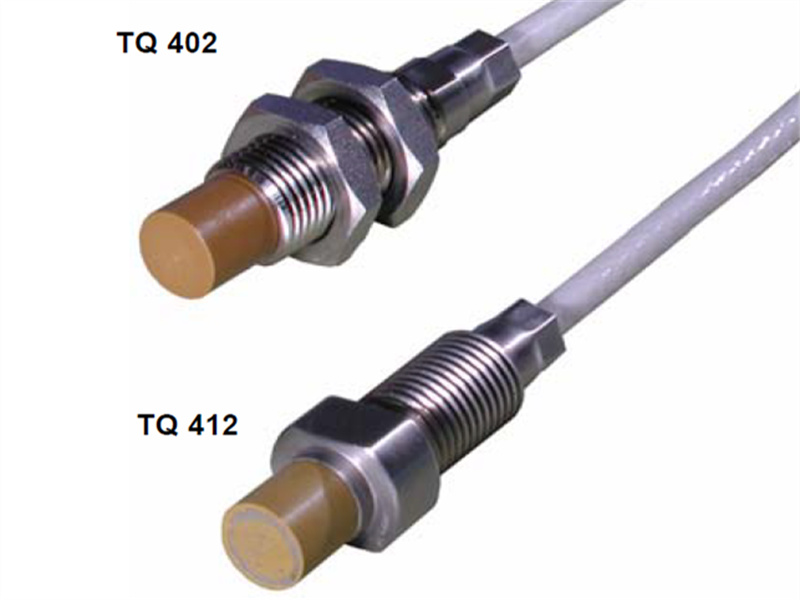

The system is based around a TQ402 or TQ412 non-contact sensor and an IQS900 signal conditioner. Together, these form a calibrated proximity measurement system in which each component is interchangeable. The system outputs a voltage or a current proportional to the distance between the transducer tip and the target, such as a machine shaft.
The active part of the transducer is a coil of wire that is moulded inside the tip of the device, made of Torlon ® (polyamide-imide). The transducer body is made of stainless steel. The target material must, in all cases, be metallic.
The transducer body is available with metric or imperial thread. The TQ412 version is intended for reverse-mount applications. Both the TQ402 and TQ412 have an integral coaxial cable, terminated with a self-locking miniature coaxial connector. Various cable lengths (integral and extension) can be ordered.

Note: The IQS900 signal conditioner matches or betters the outstanding measurement performance and specifications of the IQS450 signal conditioner, which it replaces. Accordingly, the IQS900 is compatible with all TQ9xx and TQ4xx proximity sensors / measurement chains.
 In addition, the IQS900 signal conditioner includes improvements such as: SIL 2 “by design”, improved frame-voltage immunity, improved electromagnetic immunity and emissions, smaller output impedance (voltage output), optional diagnostic circuitry (that is, built-in self-test (BIST)), raw output pin, test input pin, new DIN-rail mounting adaptor and removable screw-terminal connectors for easier installation. The TQ402 and TQ 412 transducers can be matched with a single EA402 extension cable to effectively lengthen the front-end. Optional housings, junction boxes and interconnection protectors are available for the mechanical and environmental protection of the connection between the integral and extension cables.
TQ4xx-based proximity measurement systems can be powered by associated machinery monitoring  systems such as VM600 cards or VibroSmart ® modules, or by another power supply.

Order number:

TQ402 111-402-000-012 A1-B1-C092-D000-E010-F1-G010

TQ402 111-402-000-012 A1-B1-C040-D000-E010-F0-G000-H05

TQ402 111-402-000-012 A1-B1-C045-D000-E010-F0-G000-H10

TQ402 111-402-000-012 A1-B1-C040-D000-E010-F0-G000-H05

TQ402 111-402-000-013 A1-B1-C042-D000-E100-F1-G100-H10

TQ402 111-402-000-013 A1-B1-C160-D000-E010-F0-G000-H10

TQ402 111-402-000-013 A1-B1-C075-D000-E050-F2-G048-H05

TQ402 111-402-000-013 A1-B1-C040-D000-E010-F0-G000-H05

TQ402 111-402-000-012 A1-B1-C155-D000-E050-F2-G050-H05

TQ402 111-402-000-013 A1-B1-C075-D000-E050-F2-G048-H05

TQ402 111-402-000-013 A1-B1-C072-D000-E050-F0-G000-H05

TQ402 111-402-000-013 A1-B2-C160-D030-E050-F2-G050-H05

TQ402 111-402-000-013 A1-B1-C060-D000-E100-F0-G000-H10

TQ402 111-402-000-013 A1-B3-C070-D000-E010-F0-G000-H05

TQ402 111-402-000-013 A1-B1-C092-D000-E010-F0-G000-H05

TQ402 111-402-000-013 A1-B1-C075-D000-E050-F2-G050-H05

TQ402 111-402-000-012 A1-B1-C092-D000-E050-F1-G050-H05

TQ402 111-402-000-012 A1-B1-C180-D000-E050-F2-C050-H05

TQ402 111-402-000-013 A1-B1-C072-D000-E100-F2-G100-H10

Frequently Asked Questions:

1.What are physical characteristics of TQ402?

Transducer construction: Wire coil Ø8 mm, Torlon (polyamide-imide) tip, encapsulated in stainless steel body (AISI 316L) with high-temperature epoxy glue

2.What measurement range does TQ402 support?

Measurement range: 2 or 4 mm
