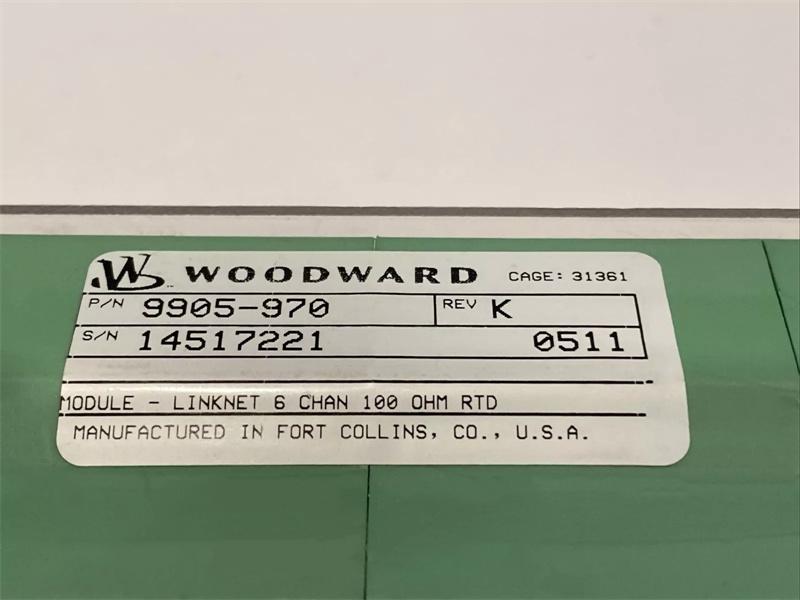

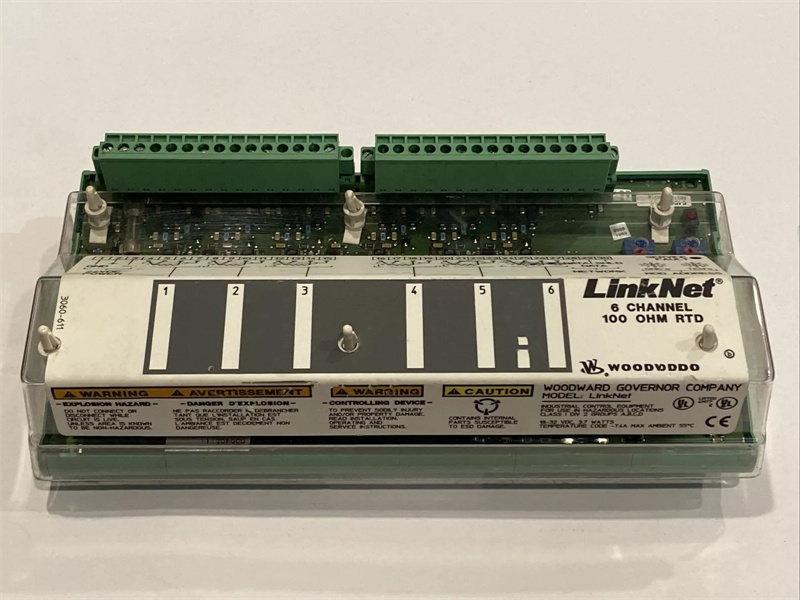

9905-970 Woodward LinkNet 6 CH RTD 100

Description:

The 9905-970 model is a LinkNet 6-Channel Input Module, engineered and manufactured by Woodward as an integral component of the 9900 Series utilized in Turbine Control Systems. This module's primary role is to furnish the control system with up to six analog input signals, facilitating the monitoring of diverse parameters within the turbine system. These inputs typically originate from sensors that gauge factors such as temperature, pressure, or flow rate. By tracking these variables, the control system can implement necessary adjustments to optimize turbine performance while ensuring its safe and efficient operation.

Key Features:
1. Multiple Input Channels: Offers up to six channels for input, enabling simultaneous monitoring of multiple parameters.
2. Analog Input Signals: Accommodates analog input signals, which are standard in turbine control systems for monitoring parameters like temperature, pressure, and flow rate.
3. High Accuracy: Engineered to deliver precise measurements of input signals, crucial for maintaining safe and efficient turbine operations.
4. Wide Input Range: Supports a broad spectrum of input signals, including voltages ranging from 0-10V and currents from 0-20mA.
5. Scalability: Compatible with other LinkNet components to form a scalable control system, adaptable to various turbine applications.
6. Easy Installation: Designed for straightforward installation and configuration, thanks to its plug-and-play design and intuitive user interface.

Datasheet Link:

9905-970 Woodward LinkNet 6 CH RTD 100 PDF Datasheet
