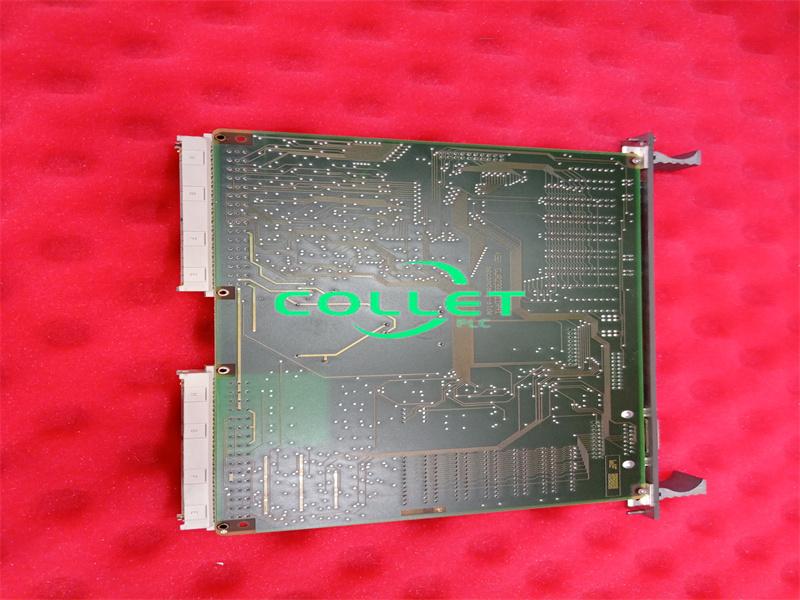

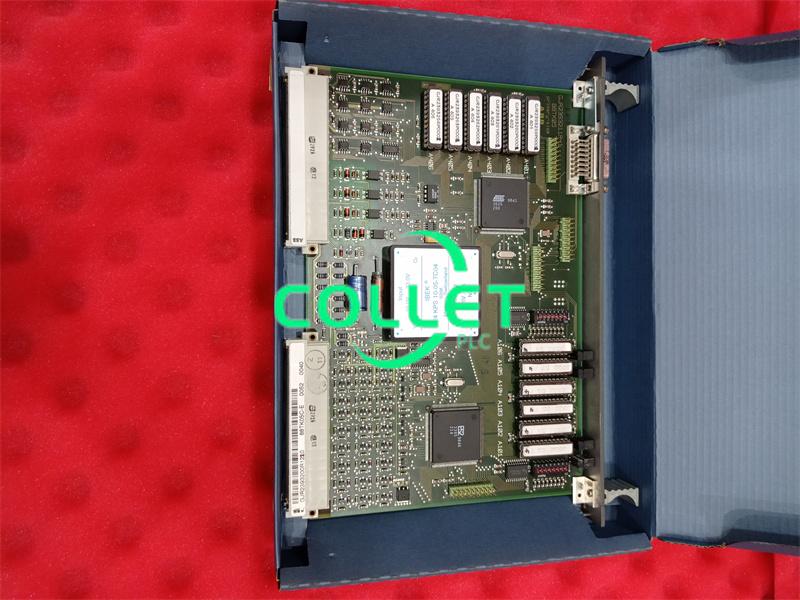

Manufacture |
ABB |
|
Model |
88TK05C-E |
| PN No. |
GJR2393200R1220 |
|
Catalog |
Advant OCS with Master SW |
|
Description |
Bus Coupling Module |
| Origin | Sweden |
| HS CODE |
85389099 |
| Dimension |
1.98*0.2*2.61 (CM) |
| Weight | 0.55 kg |
Description:
This module is used in stations belonging to the PROCON-TROL system. ln conjunction with remote-bus coupling module 88FTO5,it is used for coupling a PROCONTROL station to the remotebus.
Moreover, the module controls all operations which are required to exchange data within a PROCONTROL station.
The connection of the station bus to the PROCONTROL remote bus may either be of single-channel or dual-channeldesign (cf block diagram for "Connecting the stations").
When installed in an autonomous station, the module per-forms the functions of a bus control module.
