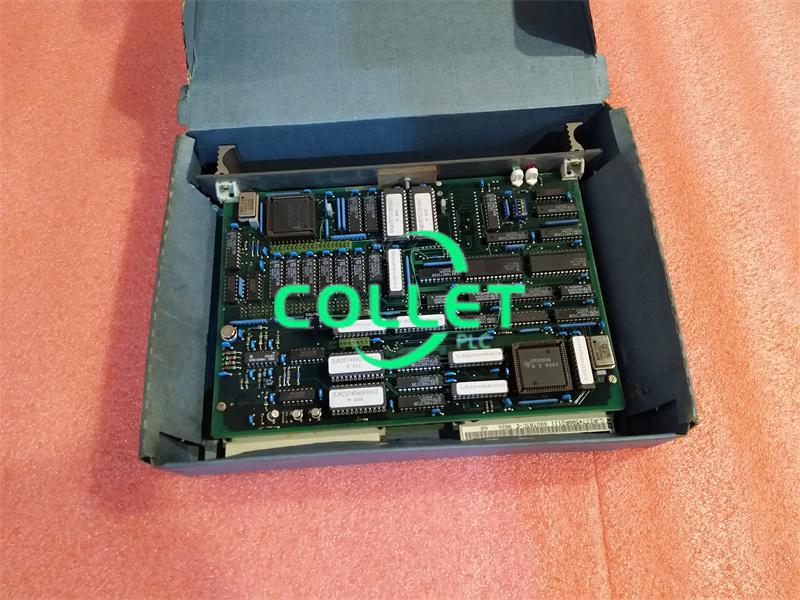

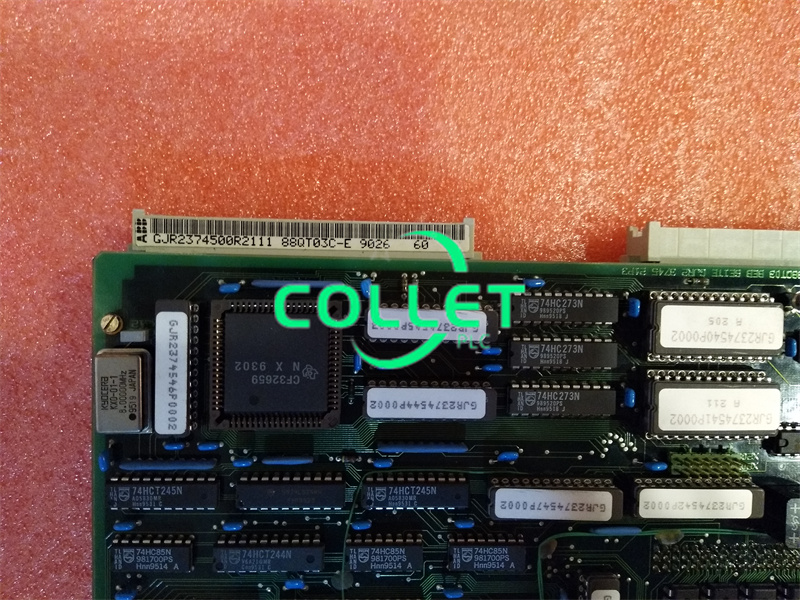

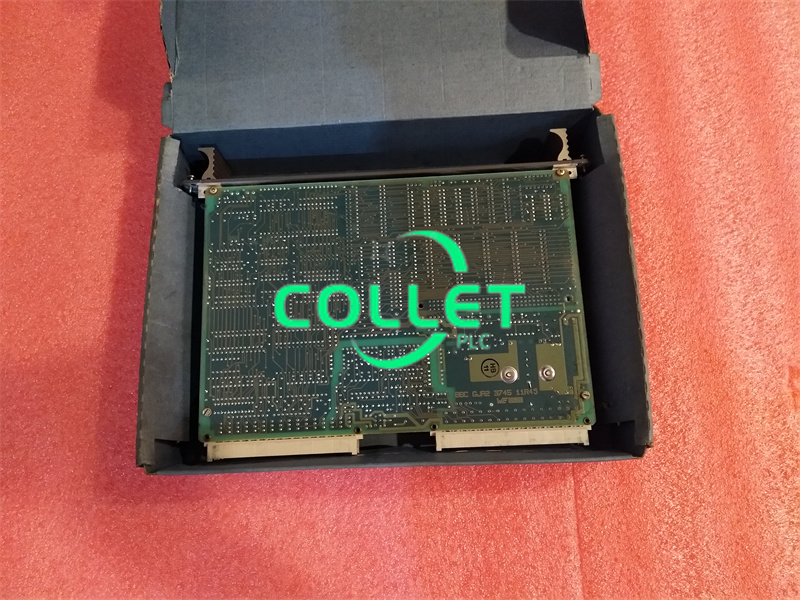

Manufacture |
ABB |
Model |
88QT03C-E |
PN No. |
GJR2374500R2111 |
Catalog |
Advant OCS with Master SW |
Description |
Bus Coupler |
Origin | Sweden |
HS CODE |
85389099 |
Dimension |
1.98*0.2*2.61 (CM) |
Weight | 0.55 kg |
Description:
The bus coupling module 88QT03 connects the station busand the input/output station. The following input/output stationmodules can be connected:
-70EA01-E/R1 Analog input module(one data telegram per function unit)
-70EA02-E/R1 Analog input module(one data telegram per function unit)
-70EB01-E/R1Binary input module (one data telegram per module)
-70EB02-E/R4 Binary input module (one data telegram per module)
-70EB03-E/R1 Binany input module (one data telegram per module)
-70ERO1/R1 Input module for checkback signals(one data telegram per module)
-70AA01/R1 Analog output module (four data telegrams per module)
-70AA02/R1 Analog output module (four data telegrams per module)
-70AB01-E/R1,R2 Binary output module (one data telegram per module)
-70BK03-E/R1,R2 Computing module
-70AS04/R1 compact drive control module
-70AS06/R1 Compact drive module for motor-driven actuators
-70WB01/R1 Control room coupling module(two data telegrams per module),
-70BK03-E/R1,R2 Bus coupling moduleRS232,RS485 interfaces)
Connected to the station bus, the module behaves like a com.bined input/output module which is able to receive max. 255telegrams from the station bus and transmit max. 200 telegrams to the station bus.
In relation to the input/output station the module acts as a pro.cessing module. lt receives and transmits a total of up to 256telegrams.
In conjunction with the module 88QB03-E/R0100 the buscoupling module can be installed in the PROCONTROL cabi.nets 89MS01 and 89MS02, too.
sheet Link:
88QT03C-E ABB GJR2374500R2111 Bus Coupler PDF Datasheet
