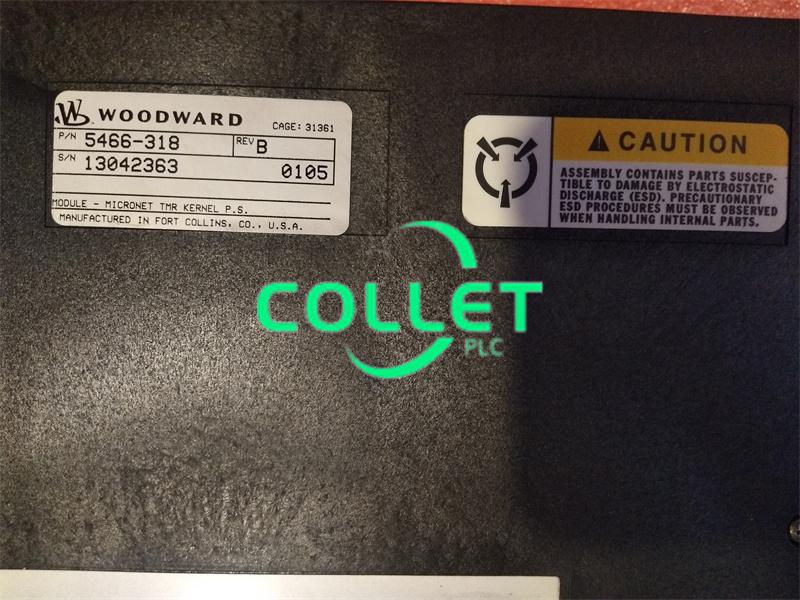

5466-318 WOODWARD, MicroNet TMR Kernel PS Module

Description:

The 5466-318, a MicroNet TMR Kernel PS Module crafted by Woodward, is engineered to accept a 24 Vdc supply from the MicroNet's primary power sources. This input undergoes meticulous regulation to yield a robust and consistent 5 Vdc output, boasting an impressive current capacity of up to 10 A. This stabilized 5 Vdc output then nourishes all vital components and modules within the kernel segment, ensuring their peak functionality and heightened responsiveness.

Central to its operation is the generation of a crucial 5 Vdc precharge voltage, which facilitates secure and methodical startup sequences. By managing the gradual activation of system elements during initialization, it shields the system from potential electrical surges or instabilities, significantly bolstering system dependability and safety measures.

Key Attributes:
- Enhanced Fault Tolerance: The architecture incorporates dedicated power supply modules for individual kernel sections, reinforcing the MicroNet TMR control system's remarkable resilience against faults. Should a power issue arise in one section, others persist unaffected, thereby upholding overall system functionality and securing vital processes.
- Redundancy & Precision: These attributes are fundamental in sustaining the MicroNet TMR control system's exceptional availability and resilience. Its advanced design assures uninterrupted performance amidst unexpected power supply disturbances, rendering it ideally suited for high-stakes environments like nuclear power facilities, aerospace endeavors, and other mission-essential sectors.
- Health Monitoring: Every kernel power supply features a singular LED indicator that visually communicates the health status of the respective power supply unit.

Installation Guidelines:
To guarantee proper functionality and maximize efficiency within each sub-chassis (kernel), adherence to the specified installation order is paramount:
- Begin by inserting the Kernel Power Supply into the leftmost module slot of the sub-chassis.
- Subsequently, the module slot immediately adjacent on the right side should be allocated for the Kernel CPU module.
This strategic sequencing ensures the sub-chassis is correctly configured, fostering smooth operations and optimal system performance.

Frequently Asked Questions:

1.What is the CPU of  5466-318?
TMR040

2.What is the function of 5466-318?
The 5466-318 module is a Kernel Power Supply Module and is one of the few modules in the MicroNet series. The module is used for precharge voltage and will send regulated voltages to the remainder of the modules in the kernel section of the MicroNet TMR.

Datasheet Link:

5466-318 WOODWARD, MicroNet TMR Kernel PS Module PDF Datasheet
