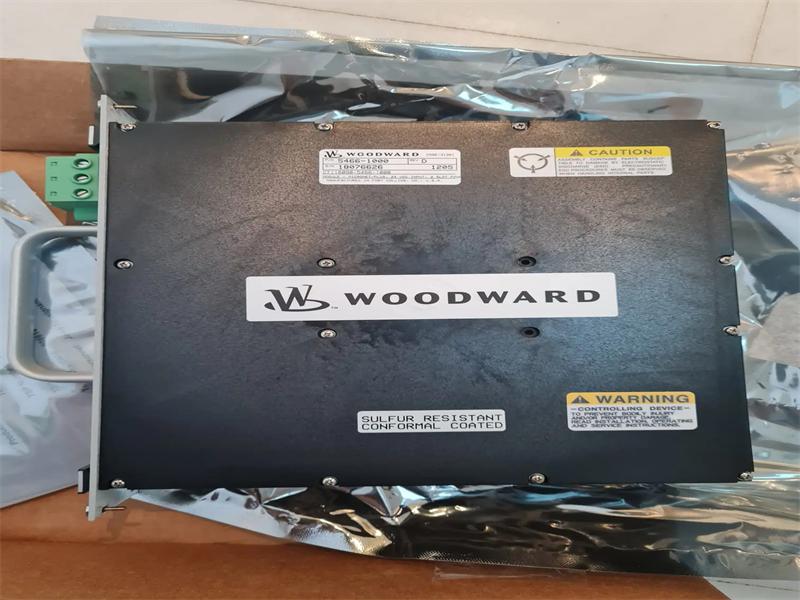

5466-1000 Woodward Power Supply Module

5466-1000

It operates with a 24 VDC input.

The power supply has a 2-slot configuration

  • Item NO.:

    5466-1000
  • Payment:

    T/T
  • Market Price:

    $3000
  • Product Origin:

    U.S.A.
  • Shipping Port:

    Xiamen
  • Lead Time:

    5-7 days
  • Goods Stock:

    12
  • Product weight:

    0.45 kg

Manufacture
Woodward
Model
5466-1000
PN No. 5466-1000
Catalog
DCS II
Description
Discrete I/O Module
Origin U.S.A.
HS CODE 85389091
Dimension 28*35*10 (CM)
Weight 1 kg

Description:

 Functional Description

The 5466-1000 is a Power Supply module crafted by Woodward, featuring a dual-slot configuration that can support up to two modules at once. It operates using a 24 VDC input and is tasked with distributing the necessary power to connected modules and components. This ensures each module receives the appropriate voltage and current for reliable operation. It is crucial to handle power supplies with caution: remove or install them only if the circuit is deactivated or if the area is confirmed to be non-hazardous.

 Installation Procedure

 Power Off:Ensure the power supply being installed is switched off before beginning the installation process.

 Align Connector Pins:Verify that all module connector pins are aligned properly and straight.

 Install New Power Supply:To install a new power supply, align the edges of the circuit board with the card guides. Push the unit into the slots until the module connectors and motherboard connectors engage.

 Secure the Unit:Apply even pressure to the top and bottom of the supply's front panel to firmly push the unit into place, or use the extraction handle as an alternative method.

 Tighten Screws:Finally, tighten the screws that secure the module together to ensure it is properly fastened.

Datasheet Link:

5466-1000 Woodward Power Supply Module PDF Datasheet
