Manufacture |
Bently Nevada |
|
Model |
330750-60 |
| PN No. |
330750-60 |
| Catalog | 330750 |
|
Description |
High Temperature Velomitor / Transducer |
| Origin | U.S.A. |
| HS CODE |
85389091 |
| Dimension |
6 (M) |
| Weight | 0.9 kg |
Description:

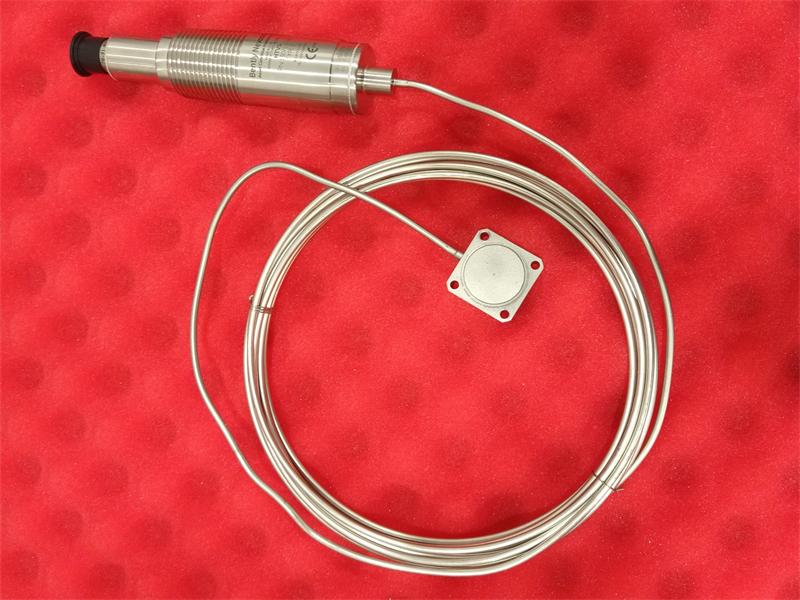

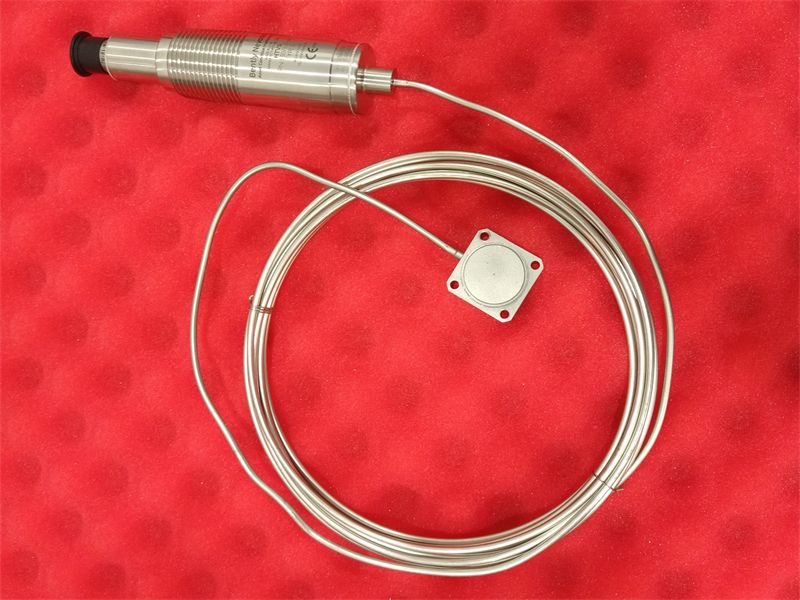

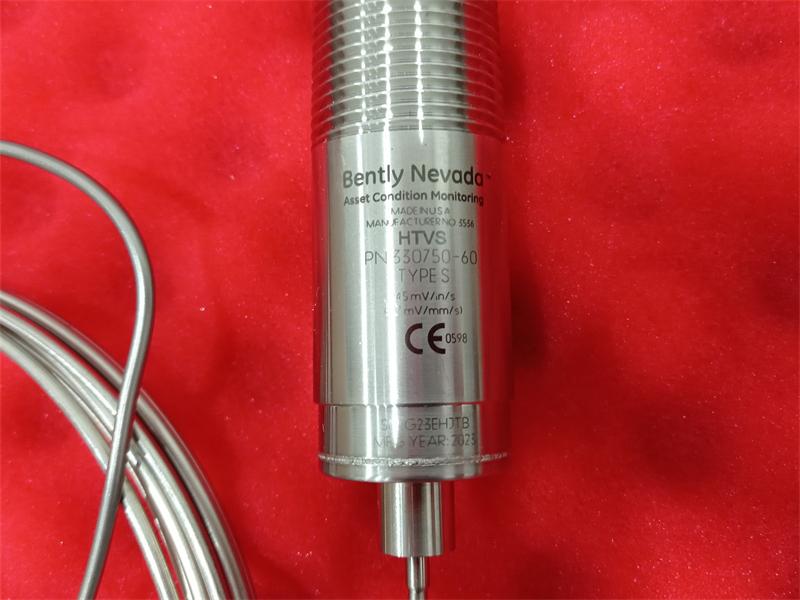

The 330750-60 is a high temperature velomitor/ transducer, manufactured by Bently Nevada.
The 330750 and 330752 High Temperature Velomitor System sensor head and integral cable are designed for high temperature environments. This enables you to mount the sensing head on surfaces with temperatures up to +400°C (+752°F).
To accomplish this, the transducer design segregates the sensing element from the signal conditioning electronics. The two are permanently connected using an integrated cable. The integrated cable eliminates connectors which are a significant source of transducer failures.
The cable enables you to position the signal conditioning electronics in a cooler location. The internal electronics withstands temperatures of 55°C to +121°C (-67°F to +250°F). The integrated design makes it possible to capture machinery performance data comparable to other Bently Nevada Velomitor transducers, but at significantly higher temperatures.
For lower temperature environments, use the standard 330500 Velomitor Piezo-velocity Sensor. You can install it in locations with a maximum operating temperature of +121°C (+250°F).
In addition, be careful to install the accelerometer transducer on the bearing housing or machine casing. Improper installation may decrease the transducer amplitude and frequency response and/or generate false signals that do not represent actual vibration. Refer to the appropriate instruction manuals and Application Notes.
Frequently Asked Questions:
1.What should be noted about the temperature of the working environment of 330750-60?
Operating ambient temperature -40°C to +100°C (Electronic Housing)
Operating ambient temperature -40°C to +400°C (Sensor and Cable)
2.What is the transient temperature sensitivity of 330750-60?
0.0762 mm/s/°C (0.003 in/s/°C), typical, as defined in ISO 5347-18:1993(E)
3.When does the warranty period start?
One year from the time the client receives the goods.
Datasheet Link:
330750-60 Bently Nevada, High Temperature Velomitor / Transducer PDF Datasheet
