24765-02-00 Bently Nevada, Case Expansion Transducer Assembly

Description:

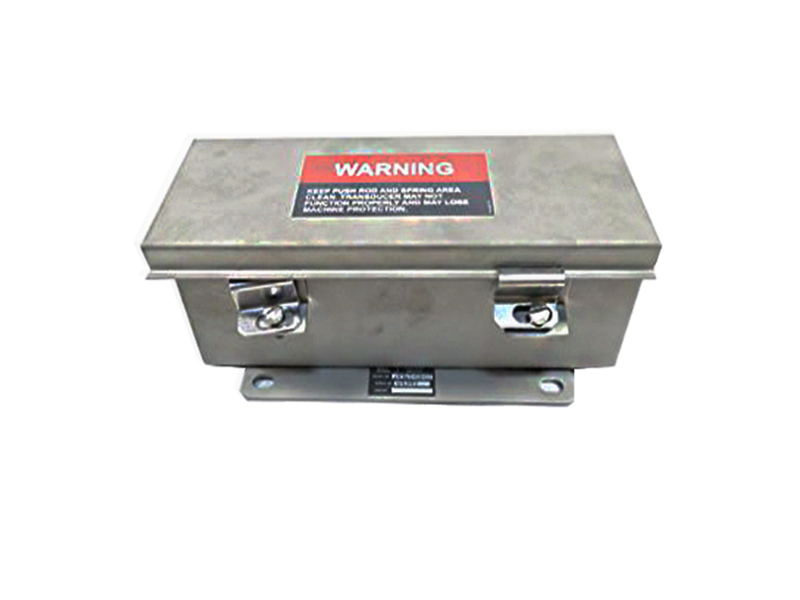

24765-02-00 is a Case Expansion Transducer Assembly, manufactured by Bently Nevada.

Thermal Case Growth Measurements in Large Turbines
An important position measurement in Turbine Supervisory Instrumentation (TSI) is case expansion. Case expansion (sometimes referred to as shell expansion) is the thermal growth of the machine case as it expands during machine startup and on-line operations. The case expansion transducer system is typically mounted on the foundation at the opposite end from where the turbine casing is attached to the foundation and provides information about the growth of the machine case relative to the foundation.
Case expansion is a parameter that you should use a dual transducer arrangement to measure. This arrangement provides information about the position of the sliding feet on the machine case. A condition that obstructs or jams one foot could distort the case and damage the machine. The dual case expansion transducer configuration in conjunction with the 3300 or 3500 monitors provides an alarm for this condition. The high temperature dual case expansion transducer configuration is compatible only with the 3500/45 Position Monitor.
Case expansion measurements also enable you to determine whether machine conditions are exceeding expected temperature growth differentials. This is primarily a startup parameter that determines whether the machine casing and rotor grow thermally at nearly the same rate. Different rates of thermal growth can cause the rotating and stationary parts of the machine to rub.
The case expansion transducer assembly consists of a linear variable differential transformer (LVDT), which is housed in a weatherproof, protective enclosure.

How a Case Expansion Transducer Works
The case expansion transducer system uses the LVDT to measure the machine case thermal growth.
A rod on the LVDT connects to the machine. As the machine case grows, the rod moves inside the LVDT and changes the signal in the LVDT. The transducer electronically conditions the signal and outputs it to a monitor for display and alarms.

24765 dc LVDT Assembly：
Scale Factor：0.404 V/mm (10.25 V/in)
Linear Range：50.8 mm (2.00 in)
-3 dB Frequency：15 Hz

Frequently Asked Questions:
1.What is the operating and storage tempreture of 24765-02-00?
Operating Temperature: -18℃ to +71 ℃ (0 ℉ to +160 ℉).
Storage Temperature
-54 ℃ to +93 ℃-（65 ℉ to +200 ℉).

2.What are the linearity and stability of 330750-60?
Linearity：±0.5% full-range
Stability：0.125% full-scale.

3.When does the warranty period start?

One year from the time the client receives the goods.

Datasheet Link:

24765-02-00 Bently Nevada, Case Expansion Transducer Assembly PDF Datasheet
