Manufacture |
ABB |
Model |
YPP110A |
PN No. |
3ASD573001A1 |
Catalog |
S800 I/O |
Description |
Passive Unit |
Origin | Sweden/Malta/India |
HS CODE |
8537109070 |
Dimension |
18*16*4 (CM) |
Weight | 0.5 kg |
Description:
Product Overview

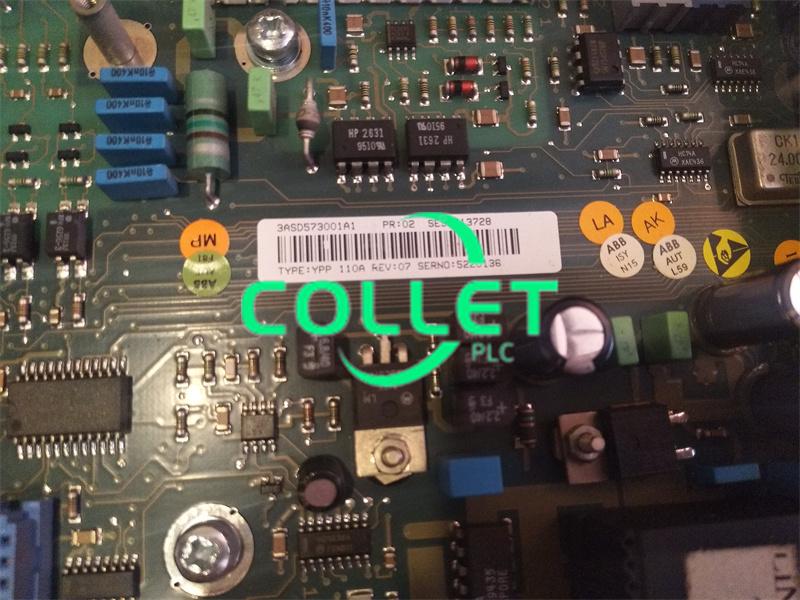

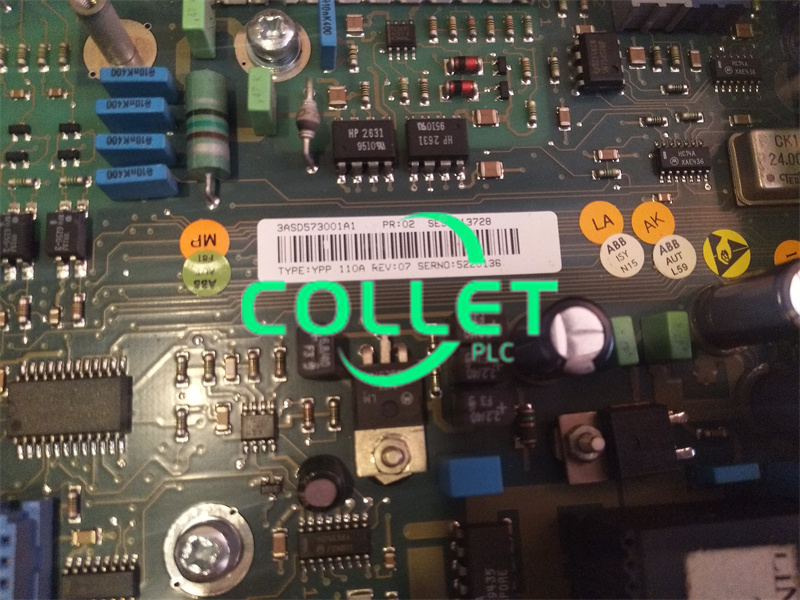

Model: YPP110A 3ASD573001A1
Manufacturer: ABB Group
Application Areas: Power systems, industrial automation, energy industry (such as power plants, substations, and distribution systems), transportation field (such as electric vehicles, railways, and rail transit systems)
Main Functions
Excitation Regulation:
- Controls excitation current or voltage to regulate the magnetic field strength of the motor.
- Ensures generators or other motors have required operating characteristics and performance.
- Automatically adjusts excitation current according to system requirements for stable power system operation.
Excitation Protection:
- Monitors electric motor excitation systems.
- Detects abnormal conditions like overcurrent and overheating.
- Takes appropriate protective measures to ensure equipment and operator safety.
Excitation Debugging and Diagnosis:
- Provides debugging and diagnostic functions.
- Assists engineers in inspecting and optimizing electric motor excitation systems.
- Ensures normal operation of systems.
Reliability:
- Advanced circuit design and reliable components.
- Good anti-interference ability and stability.
- Ensures reliable operation in various working environments.
Multiple Communication Interfaces:
- Supports RS-485, Modbus, CANopen, DeviceNet, etc.
- Facilitates data exchange and control with other devices and systems.
Programming and Configuration:
- Can be programmed and configured through software.
- Adjust magnetic excitation control parameters and settings according to specific generator and power system requirements.
Security:
- Emphasizes product safety.
- Includes multiple protection functions and safety mechanisms.
- Prevents overload, overheating, and other potential failures.
- Ensures safety of operators and equipment.
Product Parameters
Input Method: Three-phase AC power supply
Output: DC voltage, DC current
Control Methods: V/f, sensorless vector control, closed-loop vector control
Protection Functions: Overvoltage, undervoltage, overcurrent, short circuit, overheating
Input Voltage: 380~480VAC
Output Voltage: 0~480VDC
Output Current: 0~100A
Frequency: 50/60Hz
Frequently Asked Questions:
1.What are the Technical Features of YPP110A?
Technical Features
High Precision and High Response Performance:
- Quickly and accurately controls excitation current.
- Adapts to changes in power systems and load requirements.
2.When does the warranty period start?
One year from the time the client receives the goods
Datasheet Link:
YPP110A ABB 3ASD573001A1, Passive Unit PDF Datasheet
