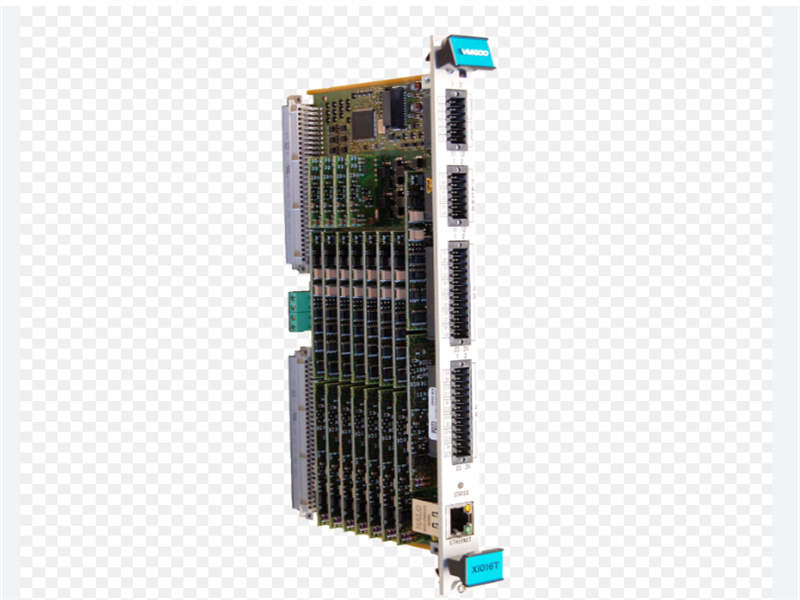

XIO16T 620-002-000-113 Extended input/output card

DESCEIPTION:

From the Vibro-Meter® product line
» Designed for operation with the VibroSight®
software total monitoring solution
» 16 dynamic vibration channels and 4 tachometer
channels, all individually configurable
» Simultaneous data acquisition on all channels
» Up to 20 configurable processed outputs per
channel
» High-resolution FFT up to 6400 lines every 1 s
» Configurable asynchronous and synchronous
sampling
» 24-bit data acquisition and high SNR data
processing, with data quality checks
» 5 configurable severities per processed output
and 8 detection levels with hysteresis and
time delay
» Supports signal sharing in VM600 racks
» EMI protection on all inputs
» Live insertion and removal of cards
(hot-swappable)
» Direct gigabit Ethernet communication
» Hardware is fully software configurable

Condition monitoring and vibration analysis, such
as the general analysis of rotating machinery and
rotor dynamics

The XMV16 / XIO16T extended vibration monitoring
card pair consists of an XMV16 extended vibration
monitoring card and an XIO16T extended input/
output card. This card pair provides all of the
interfacing and signal processing functions required
of an intelligent data acquisition system and is a
central element in the VM600 series Total Monitoring
Solution, from Meggitt Sensing Systems’ VibroMeter® product line. The cards are designed for
operation with the VibroSight® software – to acquire
and analyse your vibration data before
communicating the results directly to a host computer
using the on-board Ethernet controller.
The XMV16 card is installed in the front of the rack
and the XIO16T card is installed in the rear. Either a
VM600 standard rack (ABE04x) or slimline rack
(ABE056) can be used and each card connects
directly to the rack’s backplane using two connectors.
The XMV16 / XIO16T card pair is fully software
configurable and can be programmed to capture data
based on time (for example, continuously at
scheduled intervals), events, machine operating
conditions or other system variables. Individual
measurement channel parameters including
frequency bandwidth, spectral resolution, windowing
function and averaging can also be configur
