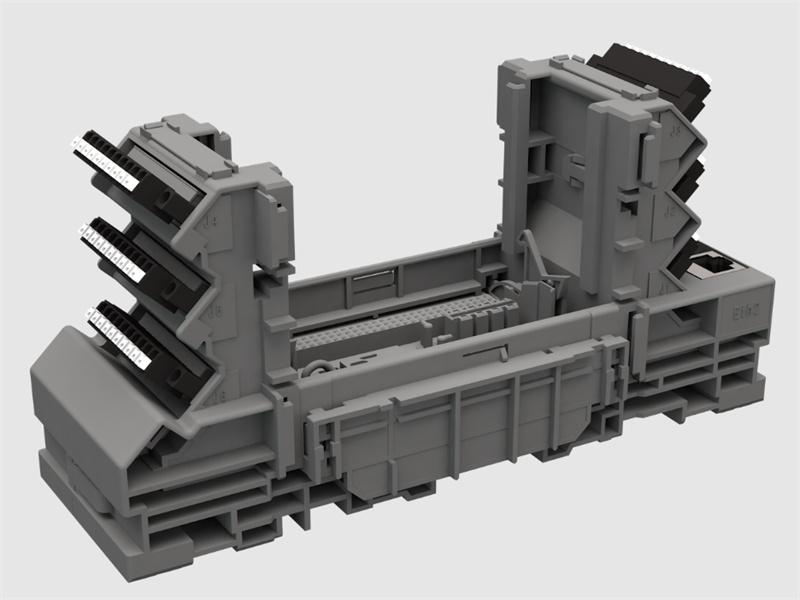

VSB300 Vibration 601-009-A0 Terminal Base for a VSV30x Module

Description:

VSB300 600-009
Terminal base for a VSV30x module

The VSV301 and VSV300 are the same apart from transfer ratio and measurement phase accuracy (see Buffered outputs – dynamic channels on page 8), and max. operating temperature, and both use the same VSB300 terminal base.
A VSV301 is supplied with a set of 6x terminal base BCF plug-in connectors for J1 to J6 that are labelled and mechanically key-coded for the VSV301 / VSB300. Sets of additional connectors can be ordered as VSK002.

Frequently Asked Questions:

1.What are the precautions for VSB300 installation?

For Ex Zone 2 applications, a VSV301 (and corresponding VSB300) must be installed in an enclosure
that ensures a protection rating of at least IP54 (or equivalent).

2.At what temperature and humidity does the VSB300 operate?

•Temperature: −20 to 70 °C (−4 to 158 °F)
•Humidity: 0 to 90 % non-condensing
