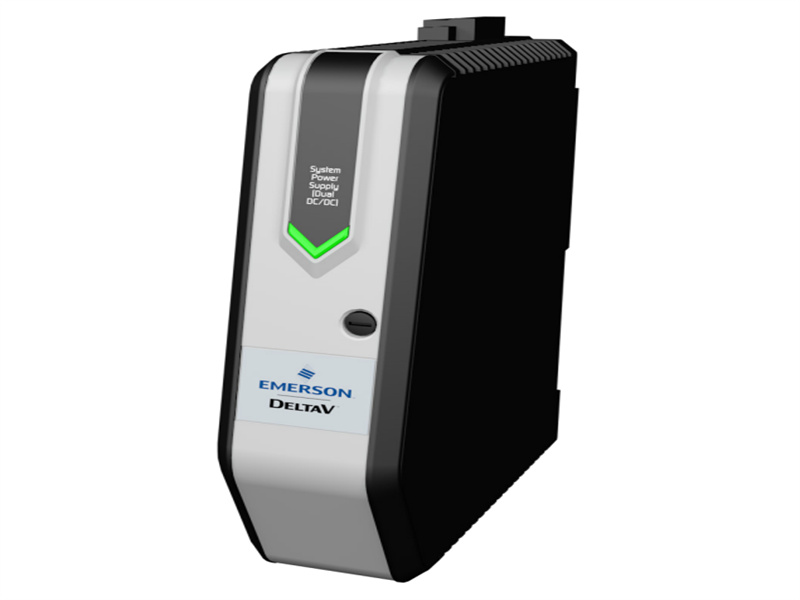

VE5109 Emerson DeltaV Power supply

Description:

The DC/DC system power supply is used to power the DeltaV controllers and I/O interfaces from either 12 or 24V DC bulk power and can be mounted next to the controller on a Power/ Controller carrier and provide the 5 and 3.3V DC required by the controller. It also provides 12V DC power to the I/O interfaces and supplies up to 8 Amps when powered from a 24V DC Bulk power supply.

Plug-and play components. The system power supply components fit into any power supply slot of any DeltaV power/controller carrier. This makes system design easy and the interchangeability reduces spares inventory.

Rail mounted. Power supply installation is simple. Mount the power/controller carrier into place on a T-type DIN rail. Then plug the system power supplies into the carrier.

Internal power bus. The power/controller carrier contains internal power buses. You don’t need to use external cabling to connect the system power supply to the DeltaV controller and the I/O interface carriers.

Modular power. You know your power requirements today, but what about the future? Lay a solid foundation now and build on it later. The modular power structure allows you to install additional power to the controller and I/O subsystems.

Accurate output. The system power supplies accept a wide range of power inputs and translate the inputs into accurate power output.

Power redundancy. DeltaV system power supplies can be redundant at 1-to-N versus 1-to-1 in other systems. This provides an economical solution to creating system redundancy.

Fault detection. Both under and over-voltage conditions are detected and recorded to protect the controller and I/O subsystem, and to enable automatic cold restart of the controller in case of bulk power supply failures.

Standard compliance. The power supplies are compliant with EMC and CSA standards. Their design meets the European “power factor correction” standards.

Immediate notification of power failure. Internal relay outputs change status and alert the user if the incoming voltage fails or if the system power supply fails. Also, the LED on the power supply housing displays the power status.

System and field power isolation. The system power supply provides isolation between the system power and field power when both are powered from the same 24V DC bulk power supply system.

Power supply removal. System power supplies are easy to remove/replace. Bulk power wires are attached to an easy mount connector rather than screw terminals.
