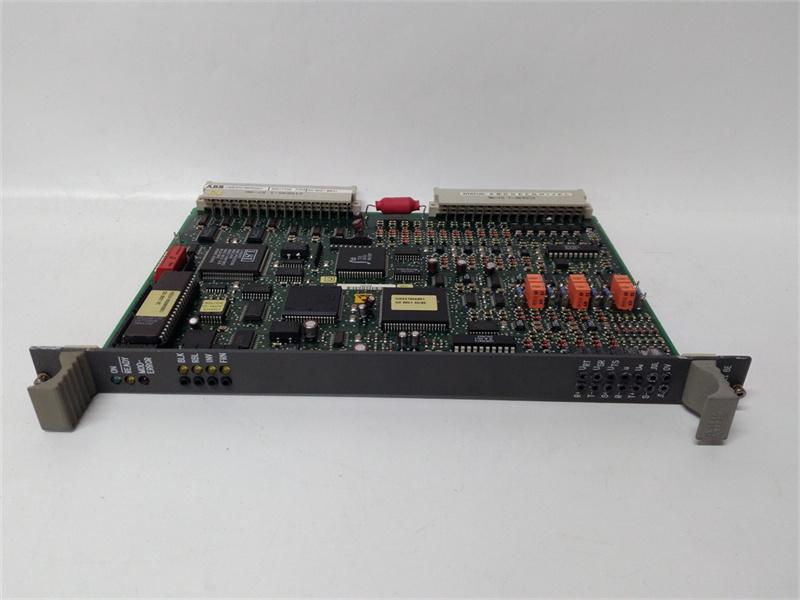

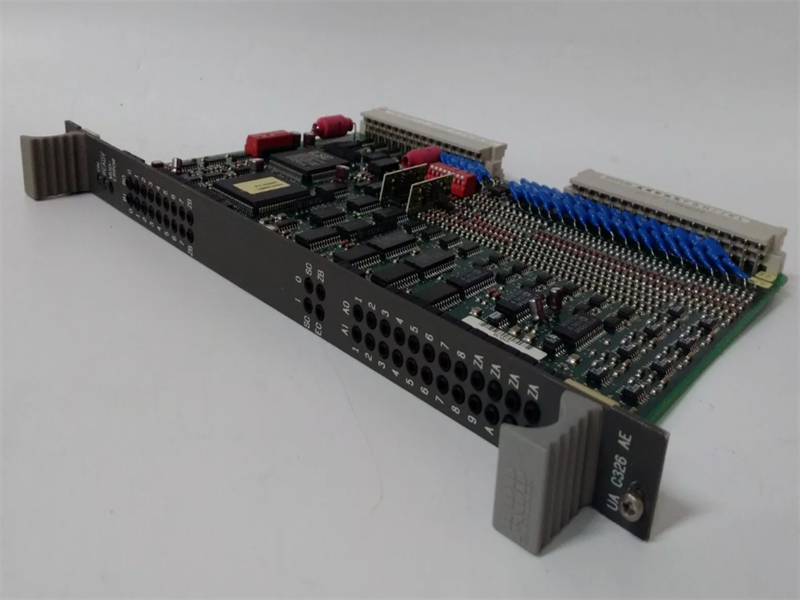

UAC326AEV1 ABB HIEE401481R1 Analog Digital I/O Card

Description:

The ABB UAC326AEV1 HIEE401481R1 is an analog/digital input/output card (Analog/Digital I/O Card) intended for use in industrial automation systems.

This card is utilized to process both analog and digital signals, facilitating connection with a variety of sensors, actuators, and other devices. Below is a comprehensive description of the product:
Features:
- Analog Input: Offers multiple analog input channels to receive signals from sensors or other analog devices. These signals typically represent physical quantities like temperature, pressure, flow, etc., as voltage or current signals.
- Analog Output: Includes analog output channels to transmit control signals to actuators or other devices. The output signal might be a voltage or current signal used to adjust the device's operation.
- Digital Input: Comprises numerous digital input channels to receive signals from digital devices such as switches, buttons, sensors, etc.
- Digital Output: Encompasses multiple digital output channels to dispatch control signals to digital devices like switches, relays, and indicator lights.

Technical Specifications:
- Input Channels: Supports a certain count of analog and digital input channels. The exact number may vary by model. Input channels are employed to read and process data from diverse signal sources.
- Output Channels: Furnishes several analog and digital output channels for controlling devices and transmitting signals. The quantity and type of output channels depend on the specific product design.
- Input/Output Range: Analog inputs/outputs usually support a broad voltage or current range. For instance, analog inputs might support 0-10V or 4-20mA signals, and analog outputs could also support similar ranges.
- Resolution and Accuracy: Provides high-resolution and high-precision signal conversion to ensure data veracity. For specific resolution and accuracy parameters, please refer to the product manual.
- Communication Interface: Equipped with standard communication interfaces, such as Ethernet, serial communication (RS-232/RS-485), etc., to streamline data exchange with the main control system or additional devices.
- Power Requirements: Generally requires a particular power input, such as 24V DC. Please consult the product documentation for specific power requirements.
