Manufacture |
ABB |
|
Model |
TY805 |
| PN No. |
3BSE080253R1 |
|
Catalog |
S800 I/O |
| Description |
Termination Unit Module |
| Origin | Sweden/Malta/India |
| HS CODE |
85389081 |
| Dimension |
1.5*6.2*1.1 (CM) |
| Weight | 0.06 kg |
Description:
TY805 3BSE080253R1 is a Termination Unit Module.

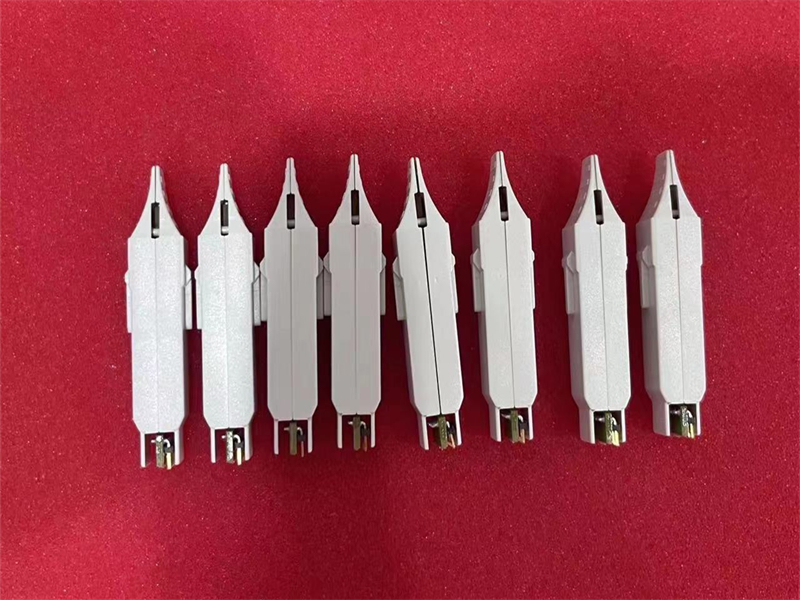

8 pcs Shunt Stick TY801. 125 + 125 ohms shunt. Used for AI845 and AI880A on TU834, TU844, TU845, TU854.
125 + 125 ohms shunt with current limitation on transmitter power.
Used for AI845 and AI880A on TU834, TU844, TU845, TU854.
Environment and certification
CE mark: Yes
Electrical safety: IEC 61131-2, UL 61010-1, UL 61010-2-201
Hazardous Location: C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
Marine certification: ABS, BV, DNV, LR
Temperature, Operating: 0 to +55 °C (Storage -25 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2
Pollution degree: Degree 2, IEC 60664-1
Corrosion protection: ISA-S71.04: G3
Protection class: IP20 according to IEC 60529
Mechanical operating conditions: IEC 61131-2
EMC: EN 61000-6-4 and EN 61000-6-2
Overvoltage categories: IEC/EN 60664-1
Equipment class: Class I according to IEC 61140; (earth protected)
RoHS compliance: Directive 2011/65/EU (EN 50581:2012)
WEEE compliance: DIRECTIVE/2012/19/EU
Frequently Asked Questions:
1.What is the payment term?
wire transfer only
2.When does the warranty period start?
One year from the time the client receives the goods
Datasheet Link:
TY805 ABB 3BSE080253R1 Termination Unit Module PDF Datasheet
