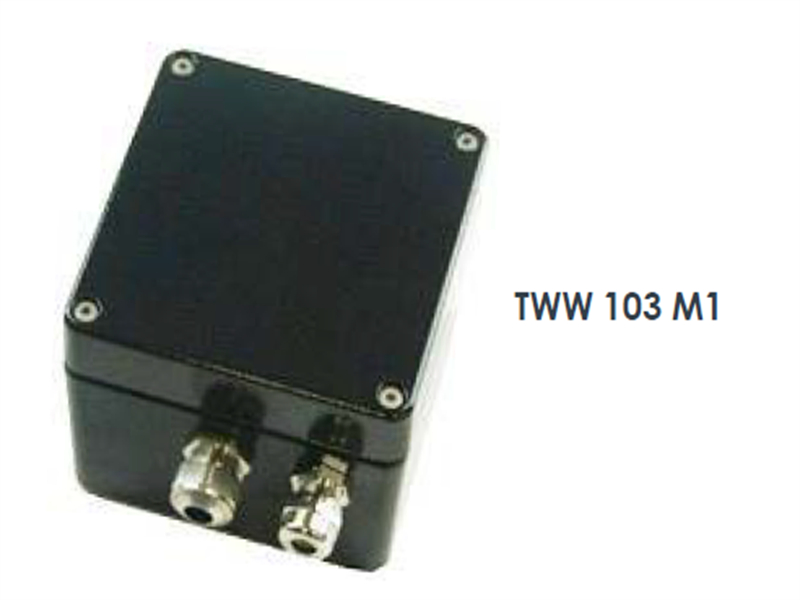

TWW103 M1 Vibration Transmitter

Description:

TWW 103 M1 is a transmitter

The TWW 103 M1 transmitter is a dedicated onechannel vibration and position measurement transmitter with a 4 to 20 mA current-loop output signal.
A TWW 103 M1 transmitter is used, in combination with a WW 018 proximity sensor, to measure the relative position of a target object without touching the target (that is, the non contact measurement of displacement).
Accordingly, such displacement measurement systems consist of a WW 018 proximity sensor and a TWW 103 M1 transmitter, and provide a measurement range (static) of 10 mm.
The TWW 103 M1 is available in standard versions for use in standard (non-hazardous) areas and Ex versions for installation in hazardous areas (potentially explosive atmospheres).

KEY FEATURES AND BENEFITS
• Available in standard versions and Ex versions certified for use in hazardous areas
• One-channel transmitter
• Measurement range: 2 to 12 mm
• Temperature range: 0 to 70°C
• Aluminum housing
• Protection rating: IP66
• Compatible with WW 018 proximity sensor

APPLICATIONS
• Shaft relative position measurement chains for machinery protection and/or condition monitoring
• General-purpose position monitoring and protection for stand-alone machines in harsh industrial environments and/or hazardous areas
