Manufacture |
ABB |
|
Model |
TU811V1 |
| PN No. |
3BSE013231R1 |
|
Catalog |
S800 I/O |
| Description |
Compact Module Termination Unit |
| Origin | Sweden/Malta/India |
| HS CODE |
85389081 |
| Dimension |
6.4*6.4*1.7 (CM) |
| Weight | 0.17 kg |
Description:

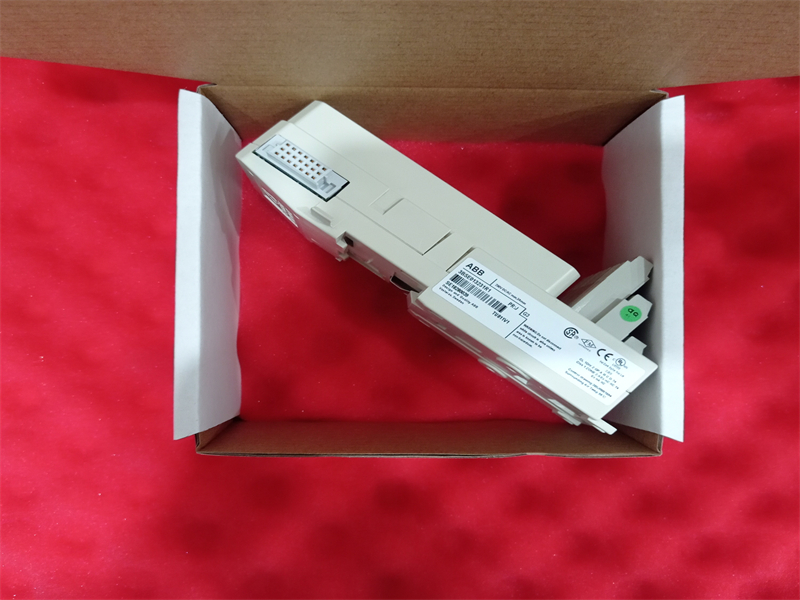

The TU811V1 is a 8 channel 250 V compact module termination unit (MTU) for the S800 I/O. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus.
The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.
Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations.
Features and benefits:
-Compact installation of I/O modules.
-Up to 8 isolated channels of field signals.
-Connections to ModuleBus and I/O modules.
-Mechanical keying prevents insertion of the wrong I/O module.
-Latching device to DIN rail for grounding.
-DIN rail mounting.
Datasheet Link:
TU811V1 ABB 3BSE013231R1 Compact Module Termination Unit PDF Datasheet
