TQ912-011 Vibration 111-912-000-011 A1-B6-E5000-F0-G0-H05 Proximity Sensor

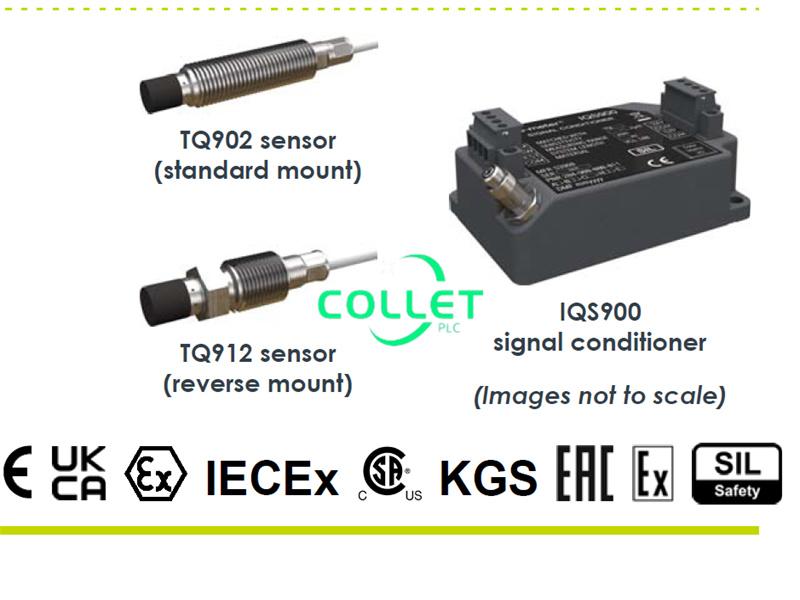

The TQ902 and TQ912 proximity sensors are essentially the same except that the TQ902 is intended for standard-mount and the TQ912 is for reverse-mount applications.

Item NO.:
TQ912-011
Payment:
T/T
Market Price:
$3000
Product Origin:
Switzerland
Color:
Depends on material
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
8
Product weight:
0.25 kg

Inquiry now

product introduction

Manufacture	Vibration
Model	TQ912-011
PN No.	111-912-000-011 A1-B6-E5000-F0-G0-H05
Catalog	NIL
Description	Proximity Sensor
Origin	Switzerland
HS CODE	85389091
Dimension	854 (CM)
Weight	0.25 kg

Description:

TQ902 and TQ912 proximity sensors and EA902 extension cable

General
Sensor input requirements :High-frequency power source from an IQS900 signal conditioner
Environmental
Temperature range
•Sensor :−40 to 180 °C (−40 to 356 °F) operating.;180 to 220 °C (356 to 428 °F) short-term survival for 2 hours max.
•Sensor and cabling : Temperature for use in an Ex Zone: see Potentially explosive atmospheres on page 4
•Cabling, connector and optional protection :−40 to 200 °C (−40 to 392 °F)
Measurement drift
•Sensor and cabling with a total system (chain) length of 1, 5 or 10 m :< 5 % for −30 to 150 °C (−22 to 302 °F)
Pressure between sensor tip and body : 6 bar (100 psid) max.
Protection rating (according to IEC 60529) : The head of the sensor (sensor tip and integral cable) is rated IP68
Vibration (according to IEC 60068-2-26): 5 g peak between 10 and 500 Hz
Shock acceleration (according to IEC 60068-2-27) : 15 g peak (half sine-wave, 11 ms duration)
Physical characteristics
Sensor construction :Wire coil Ø 8 mm, PPS (polyphenylene sulfide) high-performance thermoplastic tip, crimped to a stainless-steel body (AISI 316L)
Integral and extension cables : FEP covered 70 Ω coaxial cable, Ø 3.6 mm
Connectors : Self-locking miniature coaxial connectors.
Note: When connecting, these should be hand-tightened until locked.
Optional protection
•Flexible stainless-steel hose (protection tube) with FEP sheath (extruded fluorinated ethylene propylene) : The combination of stainless-steel hose with FEP sheath provides sealed (leak-tight) mechanical and electrically insulated protection.
Note: The FEP sheath also provides resistance to almost all chemicals and low permeability to liquids, gases and moisture, while being flexible, low friction and mechanically tough
