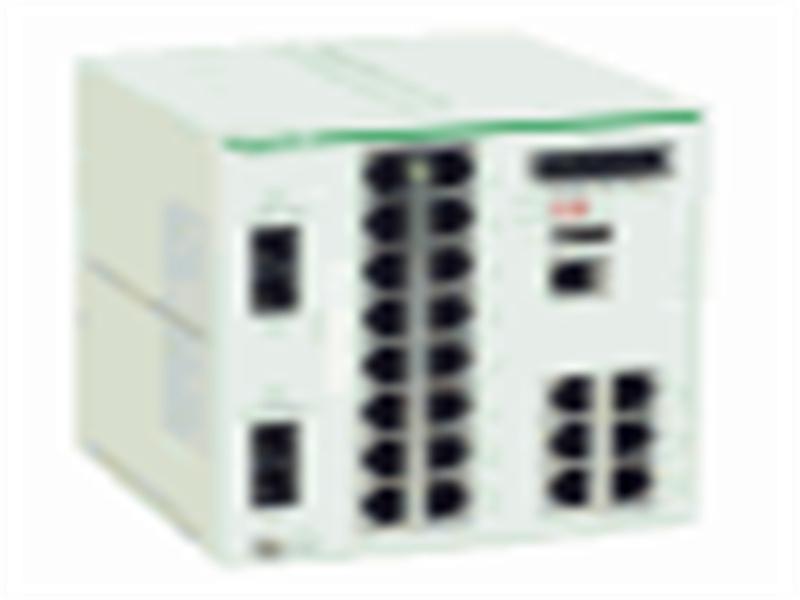

TCSESM243F2CU0 Schneider Electric Ethernet Switches

TCSESM243F2CU0 ConneXium Managed Switch -

22 ports for copper + 2 ports for fiber optic multimode

Item NO.:
TCSESM243F2CU0
Payment:
T/T
Market Price:
$7000
Product Origin:
France
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
20
Product weight:
8.5 kg

Inquiry now

product introduction

Manufacture	Schneider Electric
Model	BMEP586040
PN No.	BMEP586040
Catalog	Modicon M580
Description	Processor module
Origin	France
HS CODE	85389091
Dimension	604030 (CM)
Weight	8.5 kg

Description:

This TCSESM243F2CU0 switch is part of the Modicon Networking range, an offer of industrial network switches. This TCP/IP extended managed switch has 2 100BASE-FX ports for fiber optic and 22 10/100BASE-TX ports for copper cable. Both copper and fiber optic cablings are supported. It is a network switch with a supply voltage of 12V to 48V, a power consumption of 14.5W and maximum number of switches in a ring is 50. It is furnished with 6-way removable connector. The supported transmission medium is twisted shielded pair CAT 5E copper cable. It is an IP20 rated product. Its dimensions are 111mm (width) x 111mm (depth) x 131mm (height). It weighs 0.61kg. It is suitable for all industrial automation segment applications. This switch is part of the Modicon Networking range, an offer of industrial network switches. This TCP/IP extended managed switch has 2 100BASE-FX ports for fiber optic and 22 10/100BASE-TX ports for copper cable. Both copper and fiber optic cablings are supported. It is a network switch with a supply voltage of 12V to 48V, a power consumption of 14.5W and maximum number of switches in a ring is 50. It is furnished with 6-way removable connector. The supported transmission medium is twisted shielded pair CAT 5E copper cable. It is an IP20 rated product.

Complementary
Integrated connection type	Duplex SC fiber optic Shielded RJ45 copper cable
Transmission support medium	Twisted shielded pairs cable CAT 5E for copper cable Multimode optical fiber for fiber optic
Maximum cable distance between devices	100 m copper cable
Optic fiber length	4 km 62.5/125 µm 5 km 50/125 µm
Attenuation	0…11 dB (62.2/125 µm) 0…8 dB (50/125 µm)
Ethernet service	Configuration via web server VLAN Multicast filtering Data stream control IGMP Snooping SNMP-Traps and SYSLOG
Communication service	TFTP Quality of Service (QoS) Port monitoring Port mirroring Address conflict detection
Diagnostics run time	Signal contact Self test
Maximum number of switches in a ring	50
Redundancy	HiPER ring RSTP Redundant network coupling
[Us] rated supply voltage	12...48 V
Supply voltage limits	9.6…60 V DC SELV 18…30 V AC SELV
Power consumption in W	14.5 W
Electrical connection	Removable connector 6 ways power supply
mounting support	35 mm symmetrical DIN rail
Marking	CE UL RCM EtherNet/IP
Function available	Alarms (Traps) System information Report Trap log
Local signalling	1 dual colour LED (green/yellow) for P1 P2 power supplies 1 LED (red) for fault 1 dual colour LED (green/yellow) for ring manager 1 LED (green) for stand-by 1 LED per channel (green) for link status 1 LED per channel (yellow) for ACT Device status
Alarm output	1 voltfree contact 1 A
Alarm function	Power supply fault Data link status Redundancy ring fault Switch fault
Ethernet cabling system	TF switches
Width	111 mm
height	131 mm
Depth	111 mm
Net weight	0.61 kg
