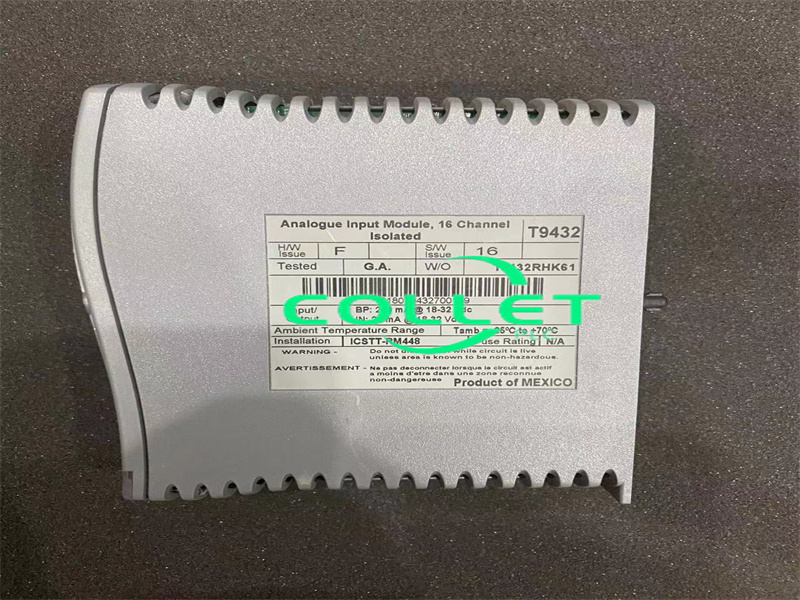

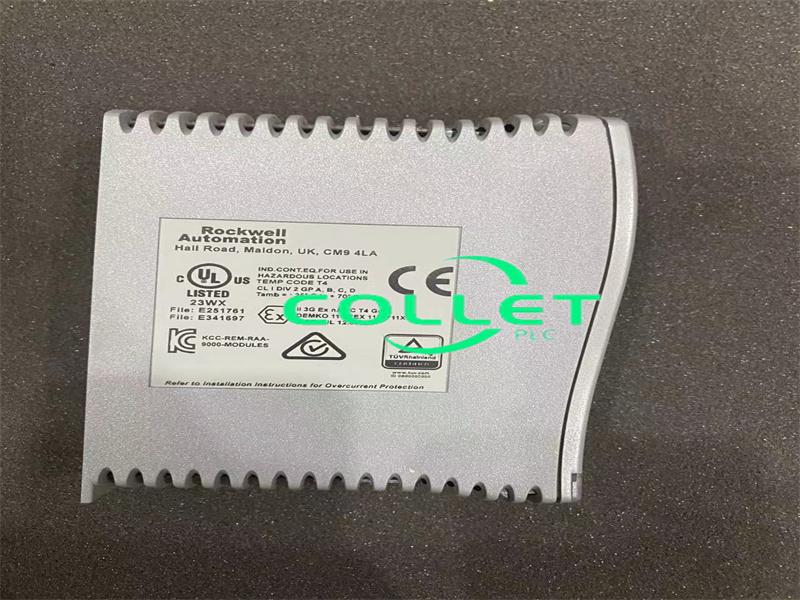

T9432 ICS TRIPLEX Analogue Input Module

The T9432 analogue input has sixteen isolated analogue input channels and measures input current in the range 0 mA to 24 mA.

Item NO.:
T9432
Payment:
T/T
Price:
$2350
Product Origin:
MEXICO
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
2
Product weight:
0.34 kg

Inquiry now

product introduction

Manufacture	ICS TRIPLEX
Model	T9432
PN No.	T9432
Catalog	AADvance
Description	Analogue Input Module
Origin	MEXICO
HS CODE	85389091
Dimension	174.212 (CM)
Weight	0.34 kg

Description:

The T9431/2 analogue input has eight (T9431) or sixteen (T9432) isolated analogue input channels and measures input current in the range 0 mA to 24 mA. Each channel supplies digital state and analogue data to the processor for process monitoring. Each input has five configurable voltage bands (there are eight distinct switching thresholds to allow hysteresis), each of which can be adjusted to supply line monitoring and field device diagnostics.

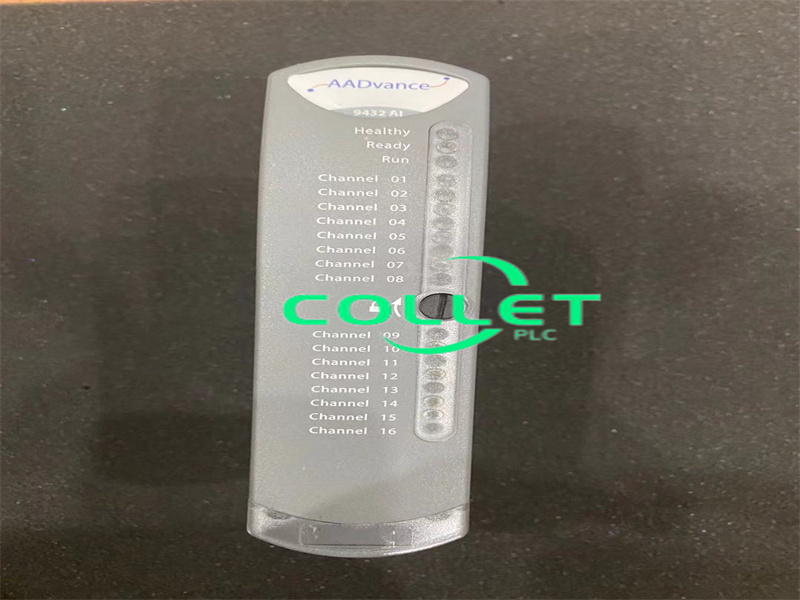

The input module makes local module and channel status indications through its front panel LEDs, the same indications can be connected to application variables and viewed at the Workbench. Comprehensive diagnostics at system and module levels give clear indications which help fast maintenance and repair.
The module incorporates signal and power isolation circuits, which divide each input channel from the remainder of the system, protecting the controller from field faults. An independent watchdog arrangement monitors the module operation and supplies more fault containment by a shutdown mechanism if a fault occurs.

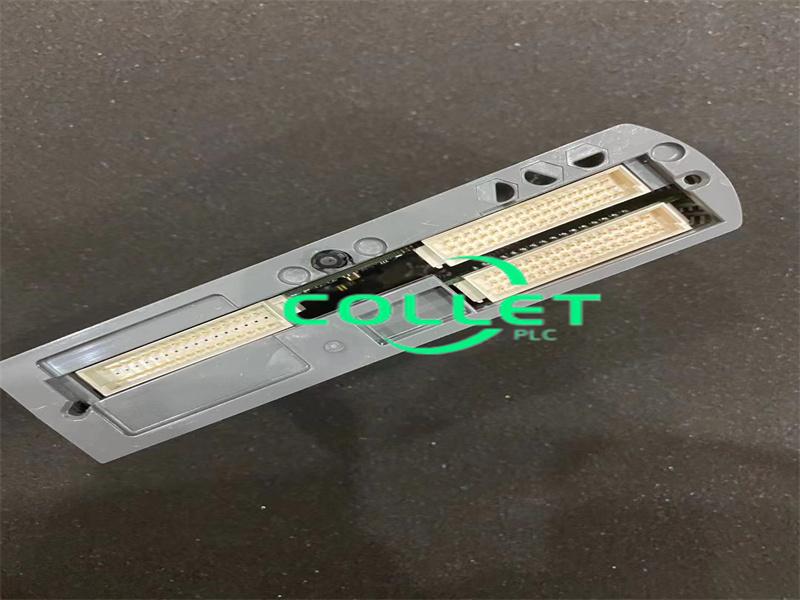

These modules mate with the T9831/2/3 Analogue Input termination assemblies. When analogue modules are installed in a dual or TMR configuration they supply fault tolerant input functionality, enabling you to replace input modules without interrupting the channel input data flow to the processor modules.

This module supports HART commands #03 to collect data from the field device. The application can be configured to use HART information to monitor and respond to device conditions, it may also be used to supply module diagnostic information such as comparison and error reporting.

Analogue Input Line Monitoring

Each analogue input module is set up through the AADvance Workbench.

Monitoring levels for each input channel are configurable at both the module and channel level. The default parameters are:

• Fault: 0 mA to 3.8 mA

• Normal: 3.8 mA to 22.0 mA

• Fault: > 22.0 mA

Datasheet Link:

T9432 ICS TRIPLEX Analogue Input Module PDF Datasheet
