Manufacture |
ABB |
|
Model |
SD833 |

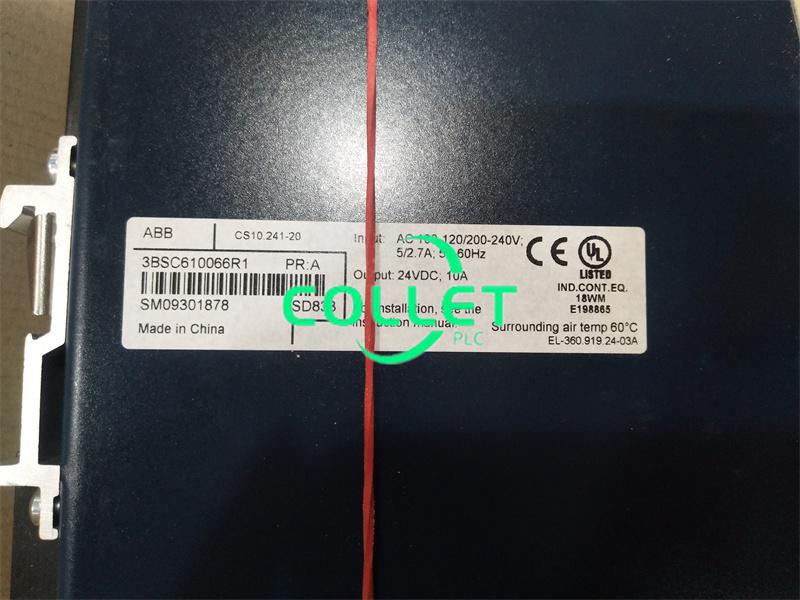

| PN No. |
3BSC610066R1 |
| Catalog | AC 800M |
| Description |
Power Supply Unit |
| Origin | Sweden/Malta/India |
| HS CODE |
85389091 |
| Dimension |
6*11*12 (CM) |
| Weight | 0.7 kg |

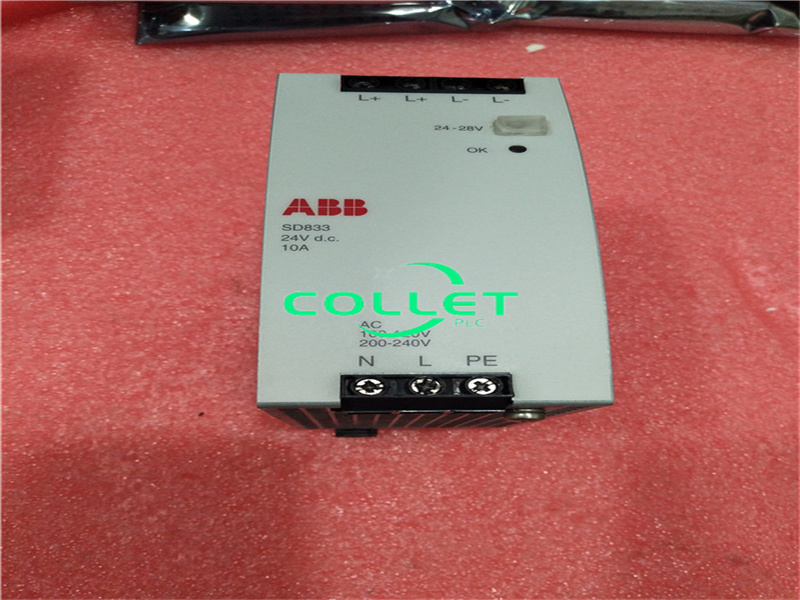

Description:
SD833 Compact Product Suite hardware selector
The SD83x Power Supply Units are designed to meet all the applicable electrical safety data stated by the EN 50178 harmonized European Standard Publication and the additional safety and function data required by EN 61131-2 and UL 508.
The secondary output circuitry is accepted for SELV or PELV applications. They are switch-mode Power Supply Units that convert the mains voltage to 24 volts d.c. These power supplies can be utilized for non-redundant and redundant applications. Redundant applications require diode voting units SS823 or SS832.
With the type SD83x series Power Supply Units, there is no requirement for the installation of a mains filter. They provide a soft start feature; power-on of an SD83x will not trip fuses or earthfault circuit breakers.
Features and benefits
-Simple DIN-rail mounting
-Class I Equipment, (when connected to Protective Earth, (PE))
-Over-voltage Category III for connection to primary main TN network
-Protective separation of secondary circuit from primary circuit
-Accepted for SELV and PELV applications
-The output of the units is protected against over current (current limit) and over voltage (OVP)
Frequently Asked Questions:
1. What are dates of rated output of SD833?
It is used for controlling and monitoring industrial equipment.Rated output current 10 A
Rated output power 240 W
Rated output voltage d.c. 24 V
Rated input power 447/514 VA
2. What is the mains voltage variation allowed?
100-120 V a.c. +-10 %, 200-240 V a.c. +-10 %
Datasheet Link:
SD833 ABB 3BSC610066R1 Power Supply Unit PDF Datasheet
