Manufacture |
EPRO |
Model |
PR9268/201-000 |
PN No. | PR9268/201-000 |
Catalog |
PR9268 |
Description |
Electrodynamic
Velocity Sensor |
Origin | Germany |
HS CODE |
85389099 |
Dimension |
18*13*4 (CM) |
Weight |
0.93 kg |
Description:

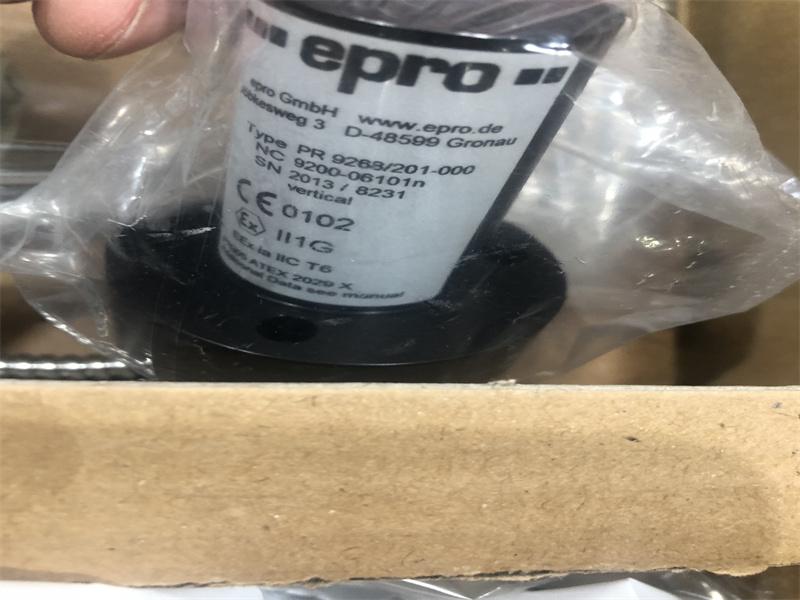

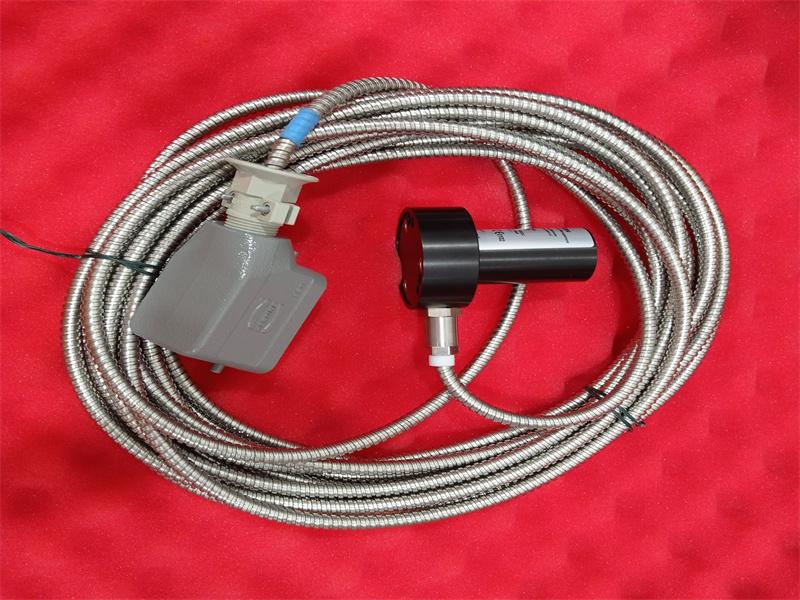

The EPRO PR9268/617-100 is an advanced electric speed sensor (EDS) designed for precise measurement of absolute vibrations in vital turbomachinery applications. This high-performance sensor is versatile and well-suited for a variety of applications, including steam, gas, and hydro turbines, as well as compressors, pumps, and fans.
Eddy current sensor systems are utilized to measure mechanical parameters such as displacement and vibration. These systems have broad applications across numerous industries and laboratories.
Thanks to its non-contact measurement principle, compact size, robust design, and resistance to harsh environments, the EPRO PR9268/617-100 is ideally suited for all types of turbomachinery.
Specifications:
- Sensitivity (± 5%) @ 80 Hz/20°C/100 kOhm: 28.5 mV/mm/s (723.9 mV/in/s)
- Measurement range: ± 1,500µm (59,055 µin)
- Frequency range (± 3 dB): 4 to 1,000 Hz (240 to 60,000 cpm)
- Operating temperature: -20 to 100°C (-4 to 180°F)
- Humidity: 0 to 100%, non-condensing
Datasheet Link:
PR9268/201-000 EPRO Electrodynamic Velocity Sensor PDF Datasheet
