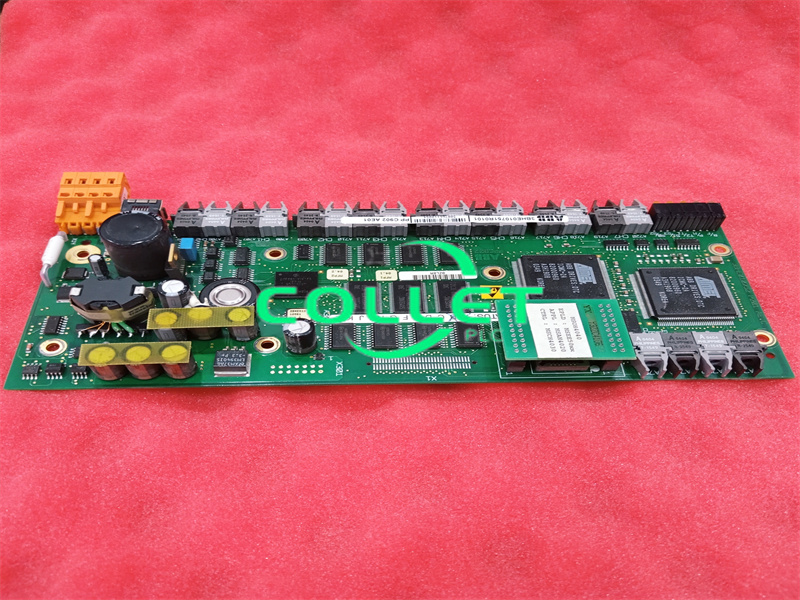

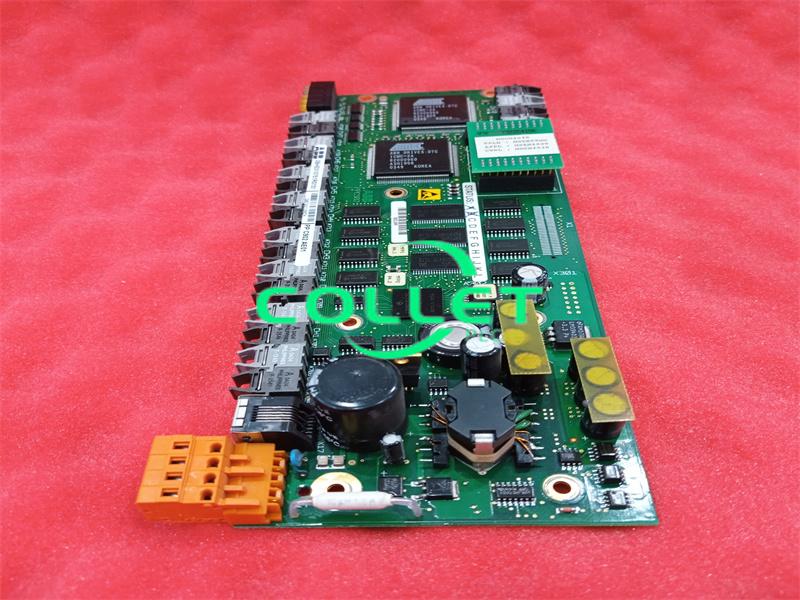

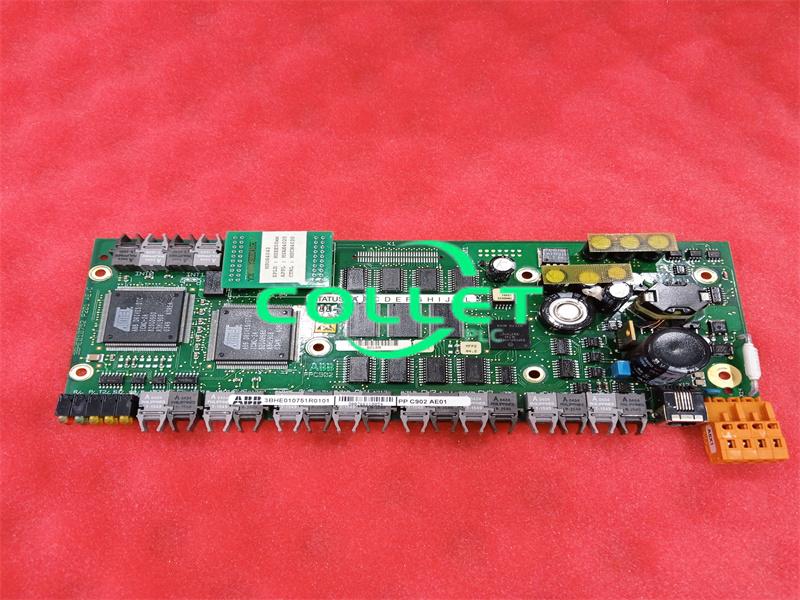

PPC902AE101 ABB 3BHE010751R0101 Circuit Board Module

Description:

Number of inputs/outputs: 32 digital inputs, 32 digital outputs.

Input/output type: Digital input signal is DC24V, digital output signal is DC24V.

Input/output current: digital input current ≤7mA, digital output current ≤500mA.

Input/output voltage: Digital input voltage range is DC0-30V, digital output voltage range is DC0-30V.

Input/output response time: the response time of digital input signal is ≤1ms, and the response time of digital output signal is ≤1ms.

High-speed counter input: Support 4 high-speed counter input, the maximum input frequency is 100kHz.

Operating temperature range: -25℃~+70℃.

Power supply voltage: DC24V.

Power consumption: The maximum power consumption is 6W.

Dimensions: Height 130mm, width 35mm, depth 130mm.

Weight: About 0.3kg.

Communication interface: RS485 serial interface.

Communication protocol: MODBUS RTU.
Digital input function: The module can accept 32 digital input signals, each input signal has high level and low level two states. The input signal can be connected via a terminal or plug-in connector.

Digital output function: The module can provide 32 digital output signals, each output signal can output high or low level signals. The output signal can be connected via wiring terminals or plug-in connectors.

Status indicator function: The module has a variety of status indicators, which can display the power status, communication status, input status and output status of the module.

Communication function: The module can communicate with PLC, DCS and other host devices through serial communication interface to achieve remote control and monitoring.

Programmable functions: The module supports a variety of programming languages and programming software, which can be programmed according to user needs to achieve more complex control and monitoring functions.

High-speed input function: The module supports 4 high-speed counter inputs with a maximum input frequency of 100kHz, which can be used for applications such as counting and pulse signal input.
