Manufacture |
ABB |
|
Model |
PP845 |
| PN No. |
3BSE042235R1 |
| Catalog | Panel 800 |
| Description |
Operator Panel |
| Origin | Sweden/Malta/India |
| HS CODE |
85389091 |
| Dimension |
30*18*6 (CM) |
| Weight | 1.4 kg |
Description:

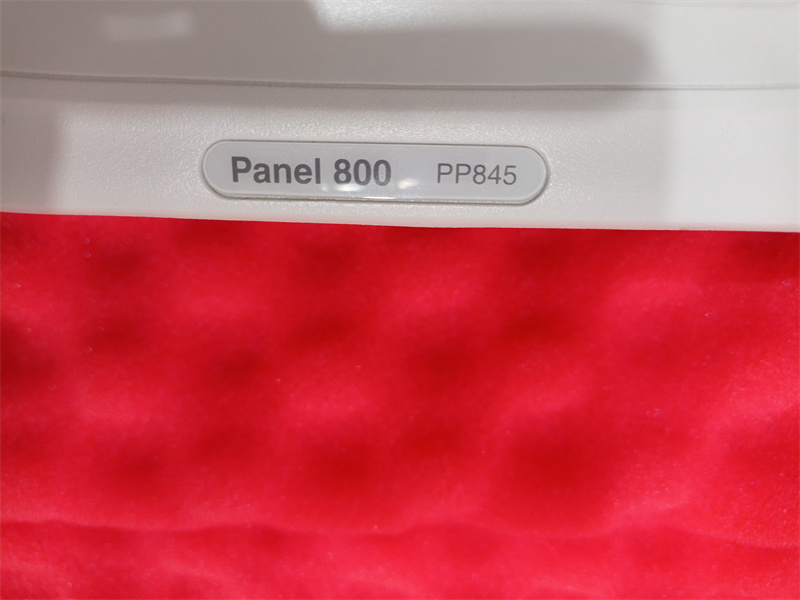

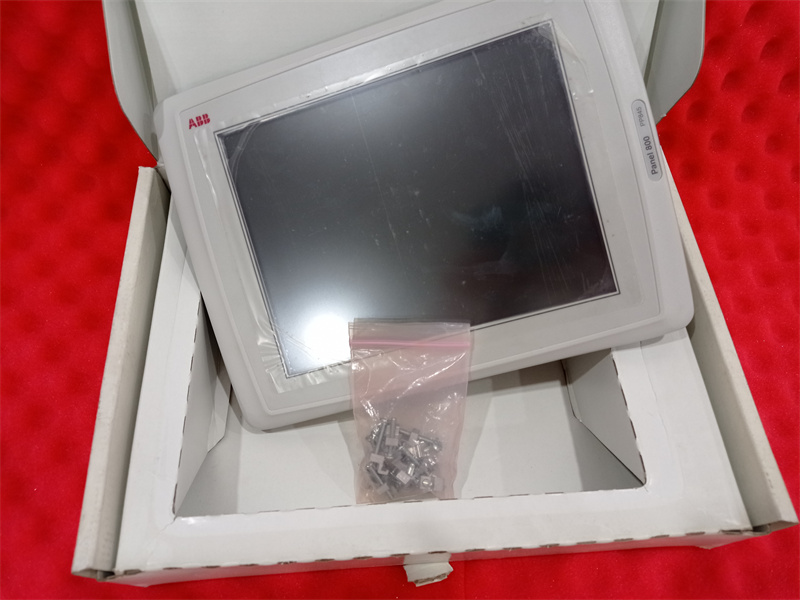

ABB PP845 3BSE042235R1, is an operator panel manufactured by ABB.
Function: It is a Human-Machine Interface (HMI) that allows users to interact with and monitor industrial processes.
Keyboard material/Front panel Touch screen: Polyester on glass *,1 million finger touch operations.. Overlay: Autotex F157/F207 *.
Serial port RS422/RS485:25-pin D-sub contact, chassis-mounted female with standard locking screws 4-40 UNC
Real time clock:±20 PPM + error because of ambient temperature and supply voltage. Total maximum error: 1 min/month at 25 °C Temperature coefficient: -0.034±0.006 ppm/°C2
Features: It has a 6.5-inch display, function keys, and communication capabilities to connect with programmable logic controllers (PLCs) and other automation equipment.
Product Type: CommunicationModule
PP845 - Panel 800 Operator Panel , Exchange Note! The replaced part with RMA to be returned according to T&C otherwise an extra charge will be required.
Frequently Asked Questions:
1.What are current and voltage of PP865A?
Current: 1A
Voltage: 24VDC
2.What is the payment term?
Wire transfer only.
Datasheet Link:
PP845 ABB 3BSE042235R1, Operator Panel PDF Datasheet
