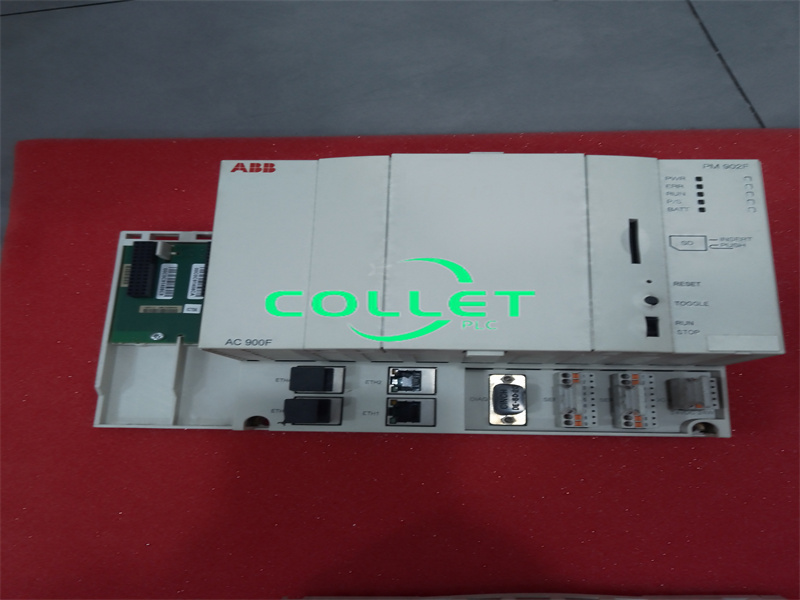

Manufacture |
ABB |
|
Model |
PM902F |
| PN No. |
3BDH001000R0001 |
| Catalog |
Freelance AC 900F controller |
| Description |
CPU module |
| Origin | Sweden/Malta/India |
| HS CODE |
85389091 |
| Dimension |
22*16*10 (CM) |
| Weight | 1.1 kg |
Description:
This CPU module is the medium base unit of the Freelance AC 900F controller family. It typically supports up to 1500 I/O and 8 MB battery buffered SRAM. 4 Ethernet interfaces, 800 MHz CPU clock, 24 MB Controller Memory, 8 MB battery buffered SRAM, and 16 MB DRAM. 2 slots for assembling Communication Interface Modules.
The operating system can be loaded during software installation. Needs an external 24 V DC power supply. Software version 2013 or higher is mandatory. Display Unit TD 951F and Battery TA 951F are not included.
Features and benefits：
- More connectivity with serial ports and Ethernet ports
- Built-in SD card support
- New Ethernet-based protocols – Modbus TCP and IEC 60870-5-104
- G3 compliant as standard
- Built-in power supply
- Optional LCD providing enhanced security through controller lock
Frequently Asked Questions:
1.What is the Power supply of PM902F?
24vdc
2.Does PM902F have ethernet port?
Yes with 4 ethernet port
Datasheet Link:
PM902F ABB 3BDH001000R0001 CPU module Freelance AC 900F controller PDF Datasheet
