Manufacture |
ABB |
|
Model |
PM511V16 |
| PN No. |
3BSE011181R1 |
| Catalog | AC450 |
| Description |
Processor Module |
| Origin | Sweden/Malta/India |
| HS CODE |
85389091 |
| Dimension |
28*28*3 (CM) |
| Weight | 0.8 kg |
Description:

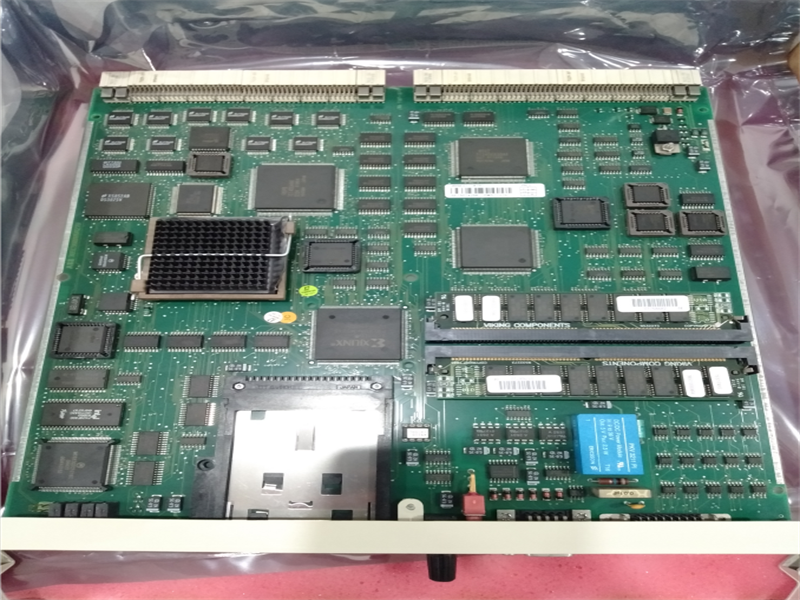

PM511V is a processor module for Advant Controller 450. It is designed to fit into RF533 series controller subracks.
The Motorola 68040 processor is a 32-bit virtual memory microprocessor with an integrated floating point unit and with dual independent instruction and data demand paged memory management units (MMUs). It also has two separate 4 kbyte caches, one for data and one for instructions.
The dynamic RAM memory is organized as a 64-bit memory with an 8-bit cyclic redundancy check sum.
The module has a Futurebus+ type interface with 32-bit address/data lines supporting compelled transfers.
Distributed arbitration is used. Arbitration messages are supported.
To support a configuration with two redundant processor modules with one running in backup mode, PM511V is equipped with logic that transfers a copy of all writes in the primary processor to the backup processor, thereby keeping a complete updated copy of the primary processor’s memory in the backup processor. This makes it possible for the backup processor to resume the operation directly in the event of a failing primary processor.
The module has an interface to the S100 I/O extension bus which makes it possible to connect it to the bus extension board DSBC 174 or DSBC 176 in a S100 I/O rack. The PCMCIA slot accepts flash memory cards for system software.

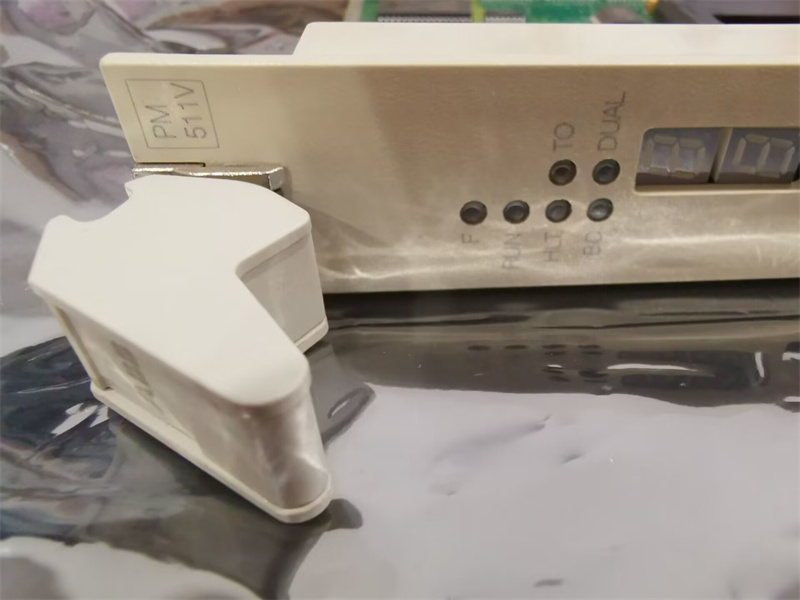

The module front has LED indicators for status information, a start mode selector switch and an ENTER push button to manually initialize the controller.
You can find the operation description of these facilities in this manual.
A label on module side gives the full identification and information of actual memory size. Available versions are designated PM511V08 or PM511V16.
Frequently Asked Questions:
1.What's the tipical voltage and max voltage for PM511?
5 V d.c. typical 4900 mA
max. 6000 mA
24 V d.c. typical 200 mA
max. 280 mA
2.What is the payment term?
Wire transfer only.
3.When does the warranty period start?
One year from the time the client receives the goods.
Datasheet Link:
PM511V16 ABB 3BSE011181R1 Processor Module PDF Datasheet
