NIMP01 ABB Bailey Multi-Function Processor Termination Module

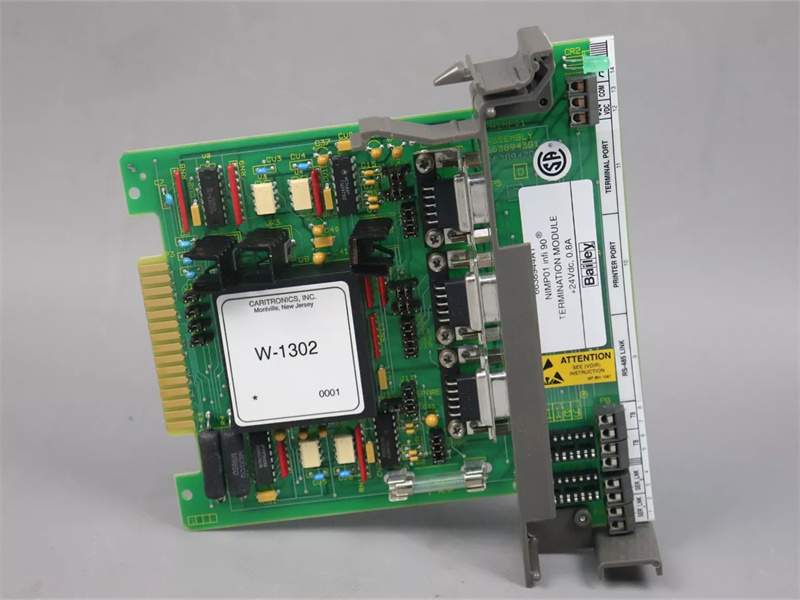

The NIMP01 Multi-Function Processor Termination Module terminates a multi-function processor, INFI-NET® to computer transfer module, INFI-NET to INFI-NET transfer module or multi-function processor interface module. The NIMP01 Multi-Function Processor Termination Module provides a termination point for two RS-232-C lines or one RS-232-C line and one RS-485 line, plus a serial link to connect an analog control station or digital control station through an NICS01 Control I/O Termination Module.

The NIMP01 Multi-Function Processor Termination Module provides a connection to the serial interface for
multi-function processors1 (MFP). The NIMP01 termination module has two isolated RS-232-C ports. One port can be configured as a non-isolated RS-485 port. Multi-function processor modules use the ports to communicate with computers, printers and sequential events recorders. The NIMP01 termination module also provides the connection for a station serial communication link. This link allows the MFP module to communicate with an IISAC01 Analog Control Station or NDCS03 Digital Control Station.
The NIMP01 termination module also interfaces with the INIIT02 INFI-NET to INFI-NET Transfer Module. The INFI-NET to INFI-NET transfer module (IIT) supports bidirectional communication through two RS-232-C ports. Port one passes system data only. Port two passes system data or can be used as a diagnostic port. The central IIT module can use a variety of means to link to the satellite IIT module such as modems, microwave and transceivers. This module communicates directly with a network interface I/O module on the local INFI-NET ring through the I/O expander bus.

Frequently Asked Questions:
1.What are the two configurable RS-232-C ports on the NIMP01 termination module used for, and how can one of these ports be alternatively configured?
The NIMP01 termination module has two jumper configurable RS-232-C ports for DCE or DTE operation, one of which can be configured as an RS-485 port

2.What is the payment term?

wire transfer only

3.When does the warranty period start?

One year from the time the client receives the goods

Datasheet Link:

NIMP01 ABB Bailey Multi-Function Processor Termination Module PDF Datasheet
