Manufacture |
ABB |
|
Model |
MDI32BIS |
| PN No. |
MDI32BIS |
| Catalog | TMR Safety and Control |
| Description |

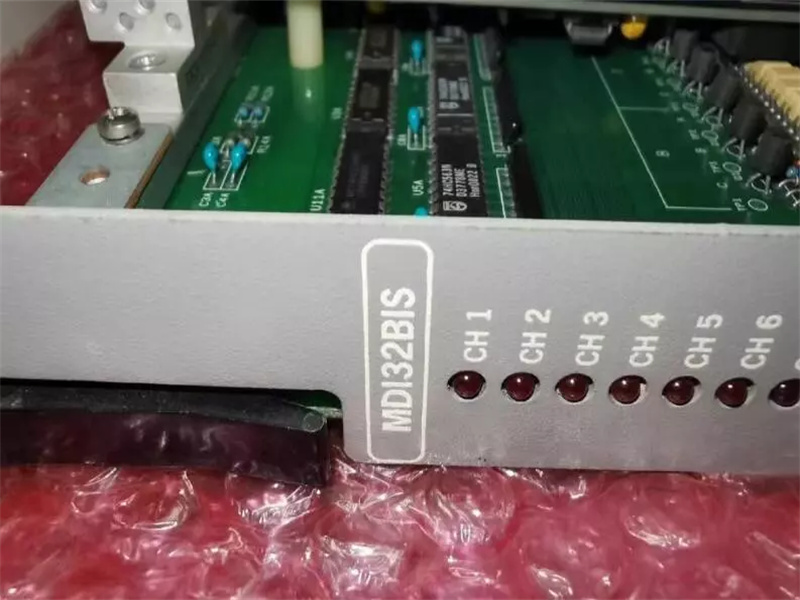

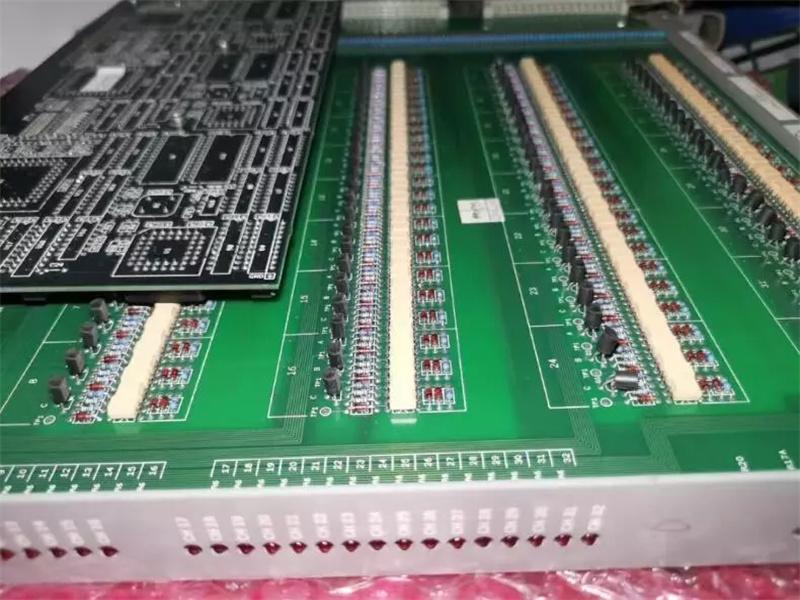

32-Channel Digital Input Module, 24 Vdc |
| Origin | Sweden/Malta/India |
| HS CODE |
85389091 |
| Dimension |
37*25*10 (CM) |
| Weight | 0.14 kg |
Description:
Each of the three Triguard SC300E processors sends voted output voltage data to the analogue output modules.The commands are received via the bus system by the three micro-controllers on each module.
Each micro-controller controls a digital to analogue converter which drives two elements of the six element output voting network. Each element of the six element voter is an isolated field effect transistor operated within its linear range. The final output of the field device is selected as the mid-value from the three circuits of output data.
Feedback to each of the three micro-controllers provides continuous checking for correctness. Diagnostics declare any fault to the processors for maintenance information and action
Frequently Asked Questions:
1.What is the payment term?
Wire transfer only.
2.When does the warranty period start?
One year from the time the client receives the goods.
Datasheet Link:
MDI32BIS ABB 32-Channel Digital Input Module, 24 Vdc PDF Datasheet
